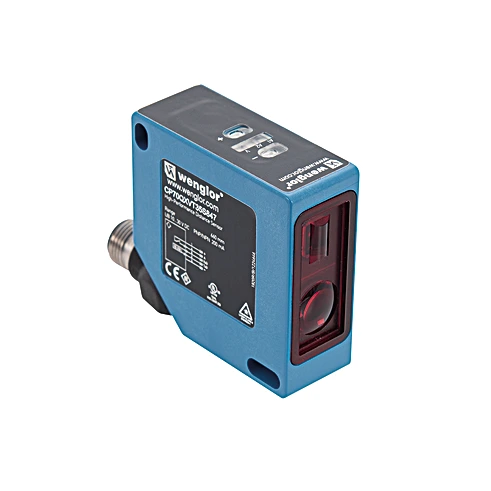

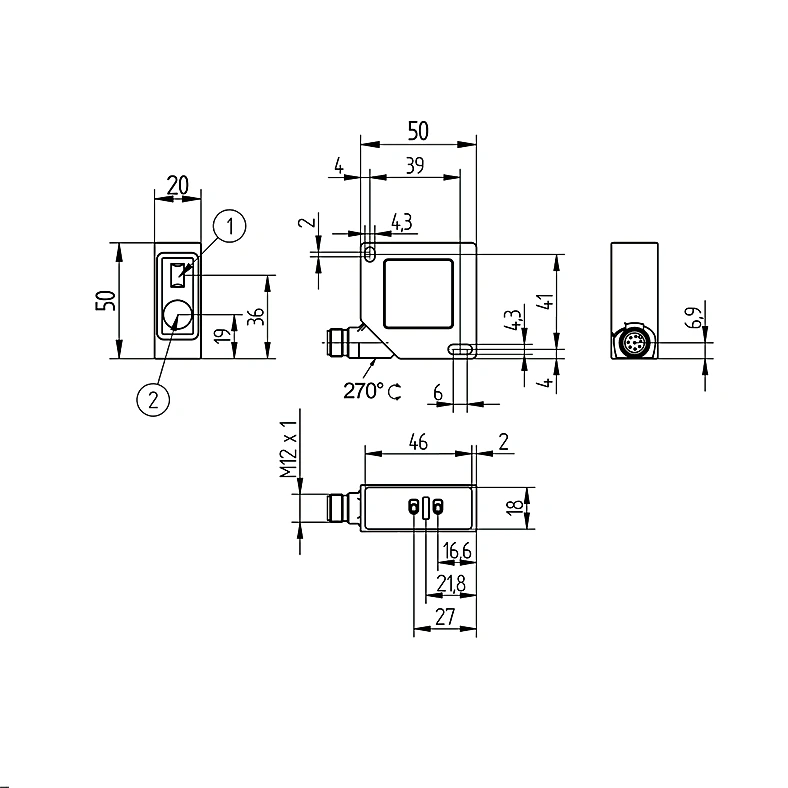

Wenglor CP70QXVT35S847 Laser Distance Sensor Triangulation

Features

• Highly accurate switching distance
• Minimal switching hysteresis
• Switching point independent of material, color and brightness
• Modification of standard product, view information document
• Range: 660 mm
• Setting Range: 60 to 660 mm *
• Switching Hysteresis: 1 %
• Light Source: Laser (red)
• Wavelength: 655 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 50 mA
• Switching Frequency: 20 Hz
• Response Time: 10 ms
• On-/Off-Delay: 10 ms
• Temperature Drift: < 50 µm/K
• Temperature Range: -13°F to 140°F
• Number of Switching Outputs: 1
• Switching Output Voltage Drop: < 1.5 V
• Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Teach Mode: FT**
• Interface: RS-232
• Transmission rate: 38,400 Bd
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic, ABS, Plastic, PC
• Degree of Protection: IP67

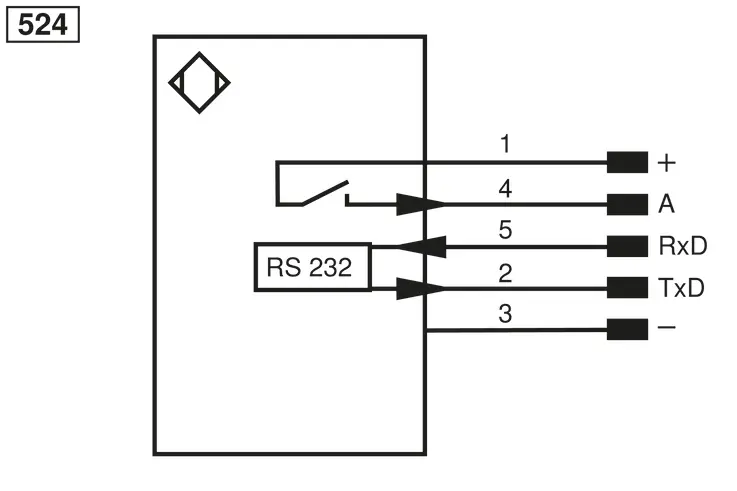

• Connection: M12 × 1; 5-pin
• Optic Cover: Plastic, PMMA
• Weight: 83 g
• Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• Error Output: yes
• Configurable as PNP/NPN/Push-Pull: yes
• Switchable to NC/NO: yes
• RS-232 Interface: yes
• Output: Error Output, Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
• Other parameters: Off-delay, On-delay

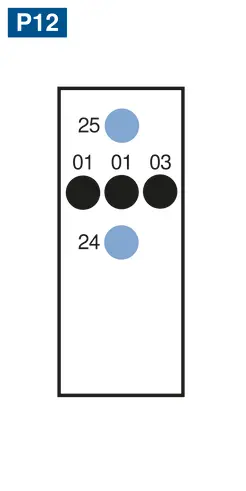

• External Information: ON time delay preset to 20 ms, OFF time delay preset to 20 ms, Preset switching distance 450 mm, Window spacing preset to ± 30 mm, Modified control panel, Modified circuit diagram.
• Detection Range: 60 mm, 660 mm
• Spot Size: 0,6 × 2,5 mm, 3 × 8 mm
• Complementary Products: Interface Cable S232W3, Fieldbus Gateway ZAGxxxN01, EPGG001
