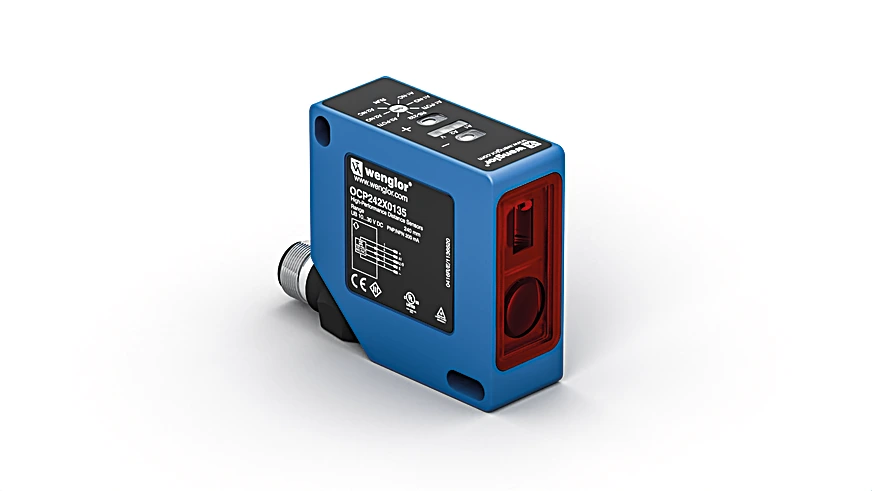

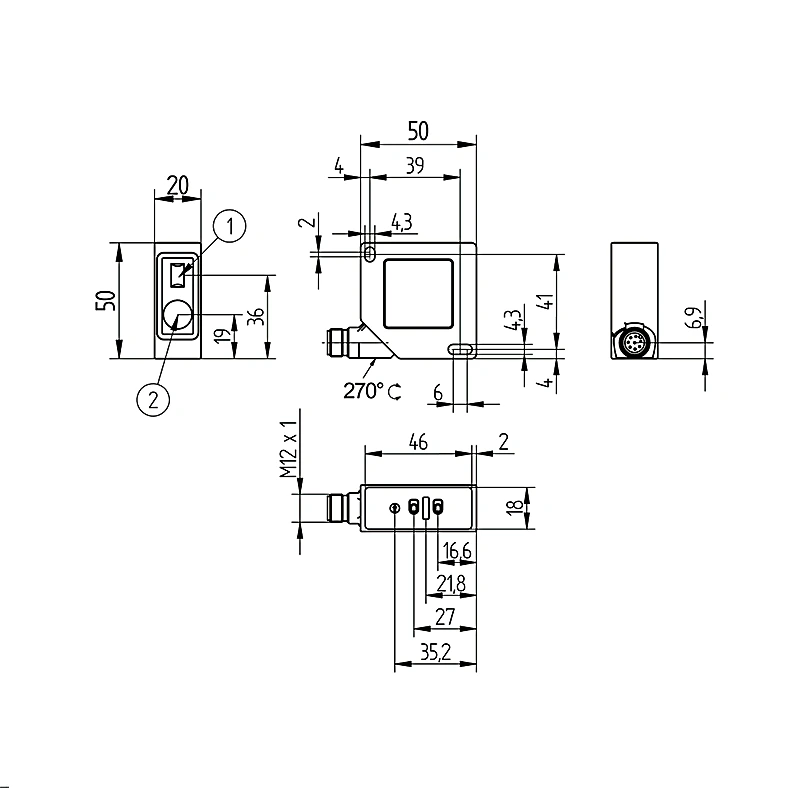

Wenglor CP35MHT80S957 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$1,539.00
Part Number
  • CP35MHT80S957
Highlights...

Features

  • Measured value independent of material, color and brightness
  • CMOS line array
  • Laser light
  • Working Range: 50 to 350 mm
  • Measuring Range: 300 mm
  • Reproducibility maximum: 1,200 µm
  • Reproducibility: 1 Sigma: 400 µm
  • Linearity Deviation: 1,000 µm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 80 mA
  • Measuring Rate: 800 /s
  • Response Time: 1,250 µs
  • Temperature Drift: < 75 µm/K
  • Temperature Range: -13°F to 122°F

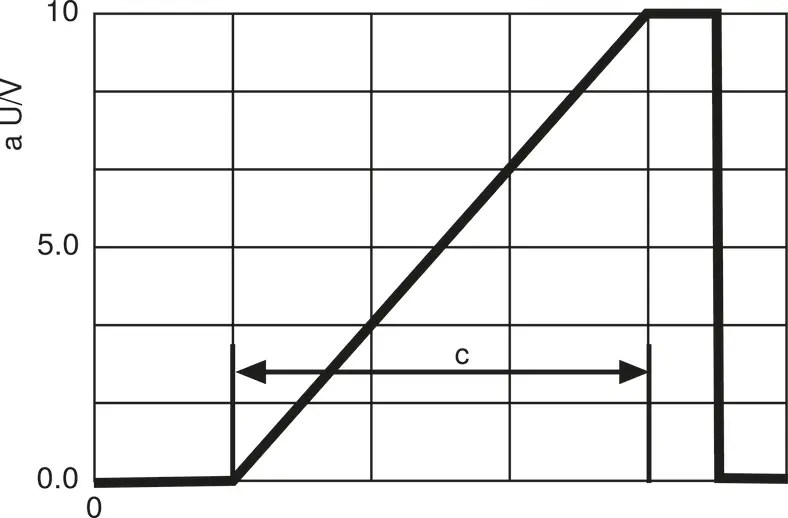

  • Analog Output: 0 to 10 V
  • Load Current Voltage Output: < 1 mA
  • Current Output Load Resistance: < 500 Ohm
  • Protection Class: III
  • FDA Accession Number: 0820590-000
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67

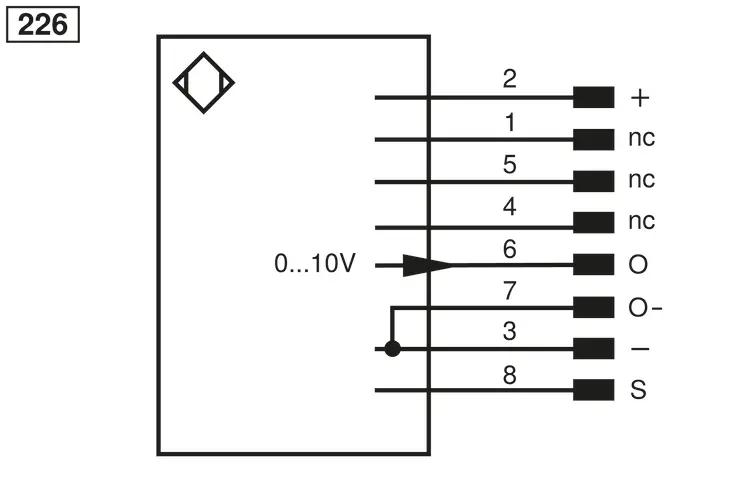

  • Connection: M12 × 1; 8-pin
  • Weight: 45 g
  • MTTFd (EN ISO 13849-1): 713.97 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • Analog Output: yes
  • Working Distance: 50 mm, 350 mm
  • Spot Size: 0,6 × 1,5 mm, 1,5 × 4 mm
  • Complementary Products: Analog Evaluation Unit AW02, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02
These sensors work with a high-resolution CMOS line and DSP technology and determine distance using angular measurement. As a result, material, color and brightness related measurement differences are virtually eliminated. Integrated analogue output can be configured for voltage 0 to 10 V (10 to 0 V) or current 4 to 20 mA (20 to 4 mA).
