Wenglor CP08MHT80S805 Laser Distance Sensor Triangulation

Features

• Response time: < 660 µs (speed-mode)
• Zoom function
• CMOS line array
• Laser light
• Measured value independent of material, color and brightness
• Working Range: 30 to 80 mm
• Measuring Range: 50 mm
• Reproducibility maximum: 60 µm
• Reproducibility: 1 Sigma: 20 µm
• Linearity Deviation: 80 µm
• Light Source: Laser (red)
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Supply Voltage: 18 to 28 V DC
• Current Consumption (Ub = 24 V): < 80 mA
• Measuring Rate: 1,500 /s
• Measuring Rate (Resolution-Mode): 600 /s
• Response Time: 660 µs
• Response Time (Resolution Mode): < 1,660 µs
• Temperature Drift: < 15 µm/K
• Temperature Range: -13°F to 140°F

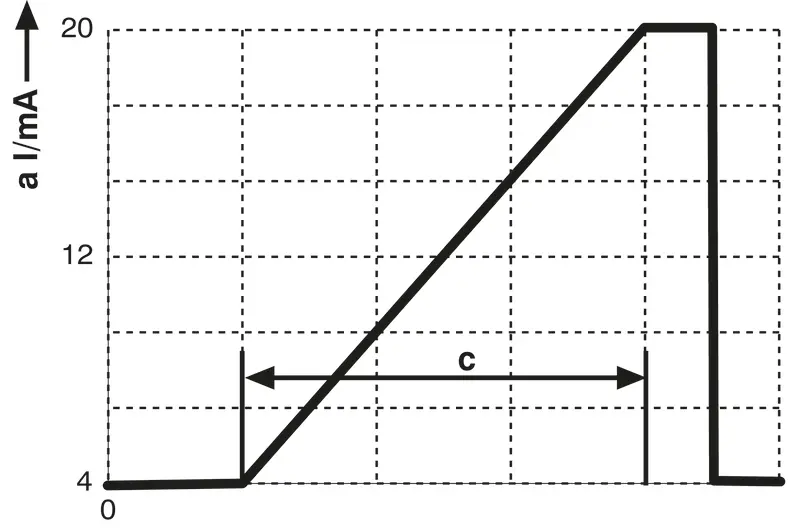

• Analog Output: 4 to 20 mA
• Current Output Load Resistance: < 300 Ohm
• Interface: RS-485
• Transmission rate: 38,400 Bd
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic, ABS, Plastic, PC
• Optic Cover: Plastic, PMMA
• Degree of Protection: IP67
• Connection: M12 × 1; 8-pin
• Weight: 50 g
• Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• Error Output: yes
• Analog Output: yes
• RS-485 Interface (half duplex): yes
• Working Distance: 30 mm, 80 mm
• Spot Size: 0,5 × 1 mm, 1 × 2 mm
• Complementary Products: Analog Evaluation Unit AW02, Fieldbus Gateway ZAGxxxN01, EPGG001, IO-Link converter, Interface Cable S232W3
