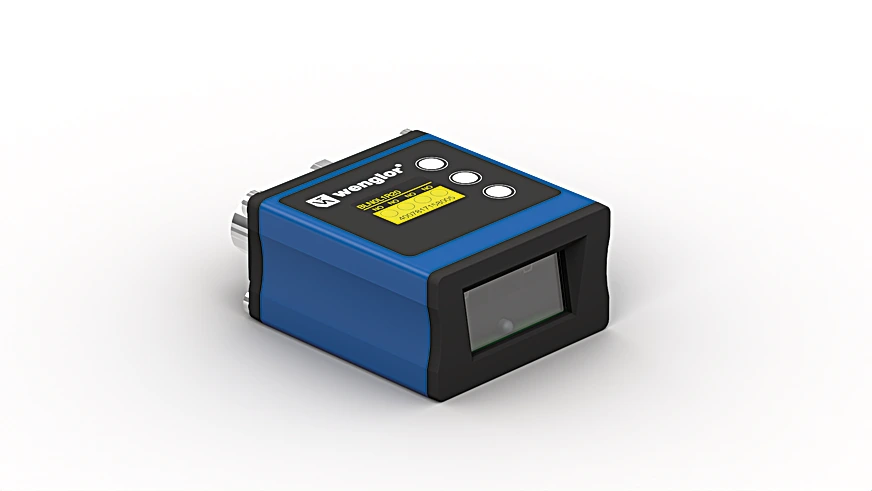

Wenglor BLN0H1R20 Barcode Line Scanner CCD Array

Barcode Line Scanner CCD Array.

$849.00
Part Number
  • BLN0H1R20
Highlights...

Features

  • Compact housing
  • LED display indicates "good read"
  • Red light

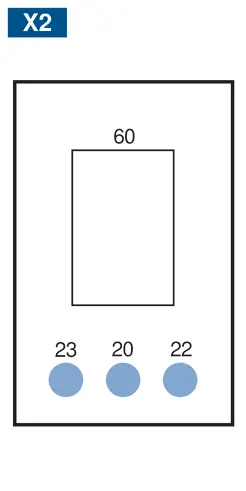

  • Web server and graphic display for simple operation
  • Ethernet TCP/IP
  • Barcode Density: Wide angle

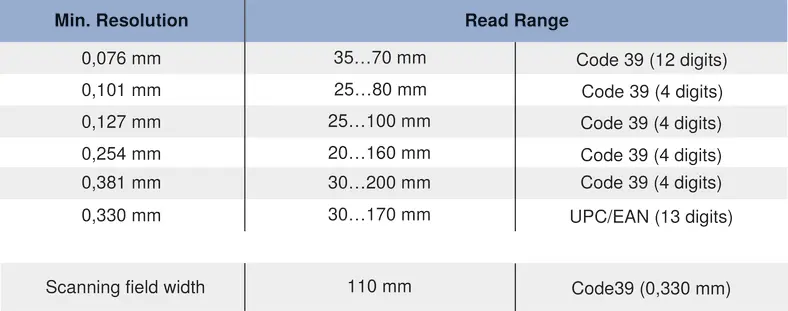

  • Read Range: 20 to 200 mm
  • Resolution: 0.075 mm
  • Light Source: Red Light
  • Wavelength: 625 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 70,000 Lux
  • Opening Angle: 65 °
  • Barcode Printing Contrast: > 30 %
  • Temperature Range: -4°F to 140°F
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Port Type: 100BASE-TX
  • Current Consumption (Ub = 24 V): < 100 mA
  • Scan Rate: 510 scans/sec
  • Inputs/Outputs: 4
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Network Possibilities: Ethernet
  • Interface: RS-232/Ethernet
  • Protection Class: III
  • Setting Method: Web server
  • Housing Material: Aluminum, powder-coated
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67
  • UL Enclosure Type: 1

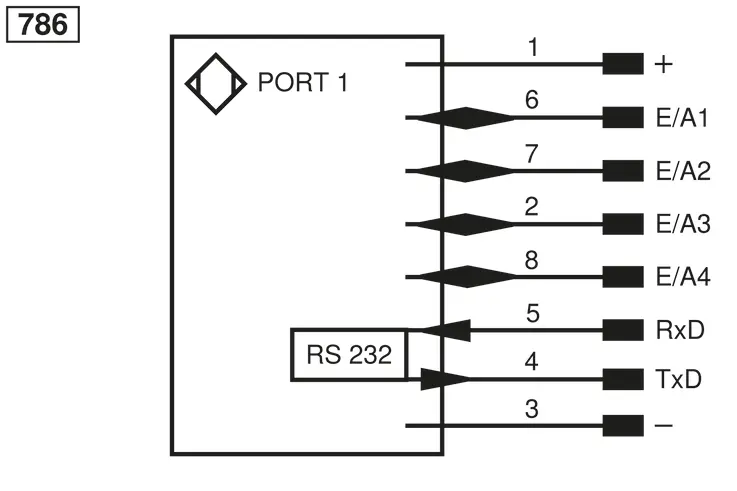

  • Connection: M12 × 1; 8-pin

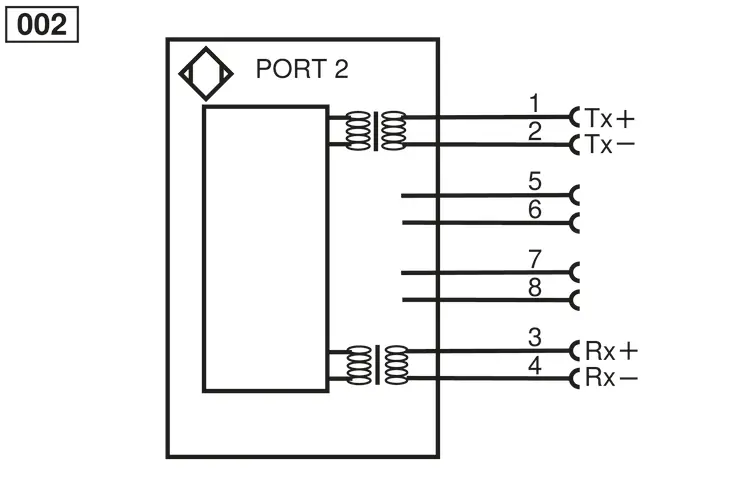

  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Weight: 217 g
  • Configurable as PNP/NPN/Push-Pull: yes
  • Switchable to NC/NO: yes
  • Ethernet: yes
  • RS-232 Interface: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Display unit, On-delay, Output delay, Trigger input
  • Complementary Products: Fieldbus Gateway ZAGxxxN01, EPGG001, Protective Housing ZNNS001, ZNNS002
This scanner is particularly suitable for detecting 1D codes printed or lasered on glossy materials. It works reliably even with small contrast differences and poor code quality. Readable code types: Code39, Full-ASCII-Code39, Interleaved 2 of 5, China Postal Code, Codabar, Code32, MSI Plessy Code, Code11, Industrial 2 of 5, Matrix 2 of 5, Telepen Code, UK Plessy Code, IATA Code, Code93, EAN13, EAN8, UPC-A, UPC-E, Code128, UCC/EAN-128, RSS-14, RSS-Limited
