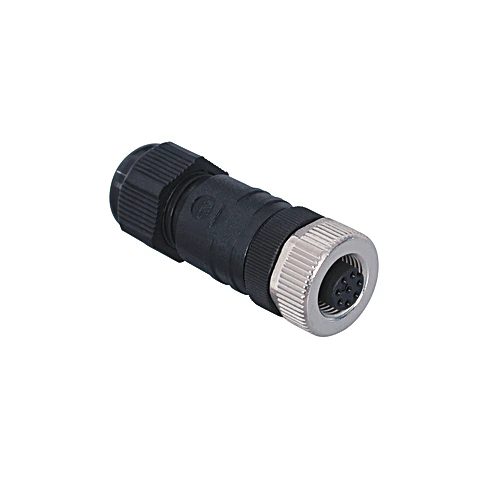

Wenglor BG80-ME Connection Socket M12 × 1; 8-pin
Connection Socket M12 × 1; 8-pin.
$35.30
Part Number
- BG80-ME
Highlights...
- BG80-ME
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Socket M12 × 1, straight
- Connection 1: Socket, straight
- Connection mode 1: M12 × 1, 8-pin
- Torque: M12: 0,6 Nm
- Coding: A-coding
- Outer diameter (d): 4 to 8 mm
- Wire cross-section: ≤ 0.5 mm²
- Assembling: Screw Terminal Technology
- Degree of Protection: IP67
- Temperature Range: -13°F to 194°F
- Material Sleeve Nut: Brass, nickel-plated
- Weight: 30 g
- Scope of delivery: 1 × connection socket
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

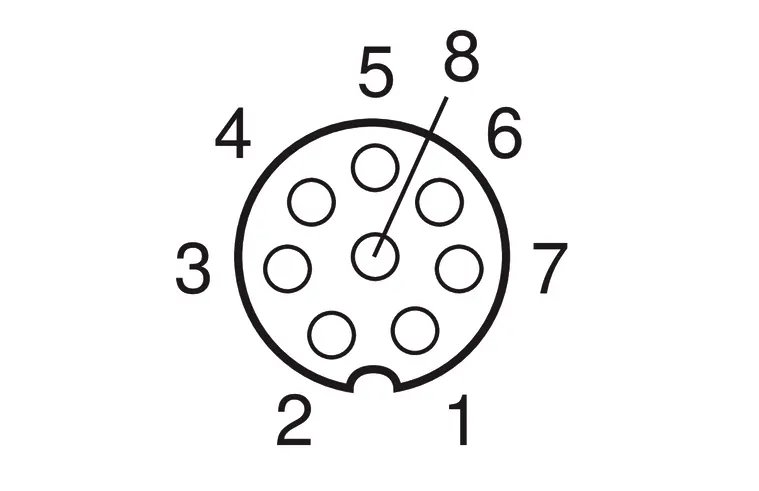

- Wenglor BG80-ME Connection Socket M12 × 1; 8-pin Pin assignment (89 KB)

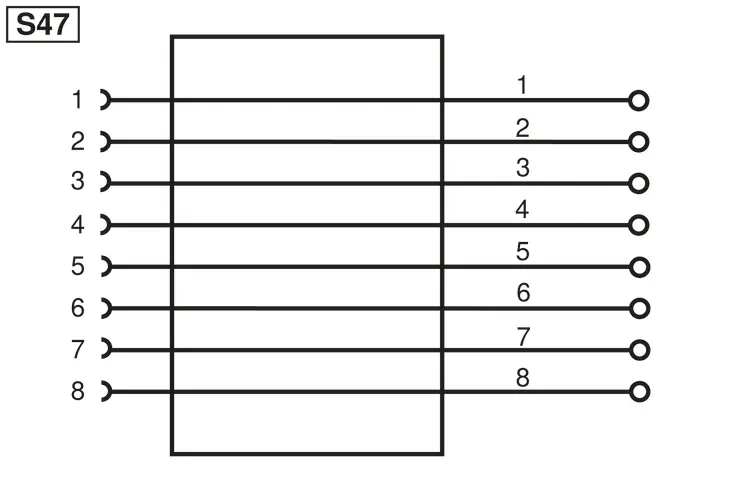

- Wenglor BG80-ME Connection Socket M12 × 1; 8-pin Connection Diagram-1 (32 KB)
- Wenglor BG80-ME Connection Socket M12 × 1; 8-pin Connection Diagram-2 (38 KB)

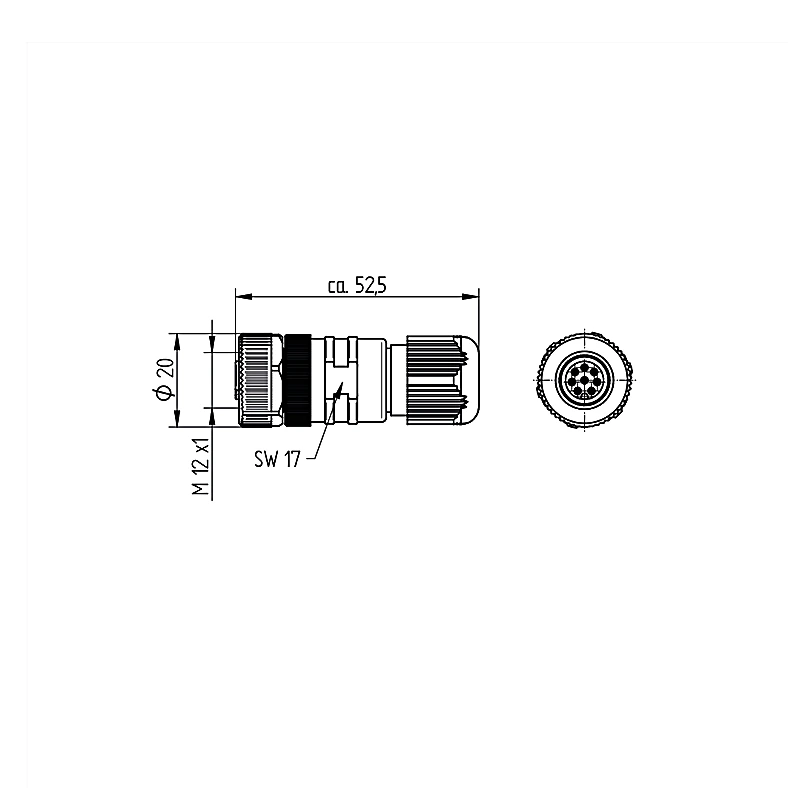

- Wenglor BG80-ME Connection Socket M12 × 1; 8-pin Dimensioned Picture (17 KB)
