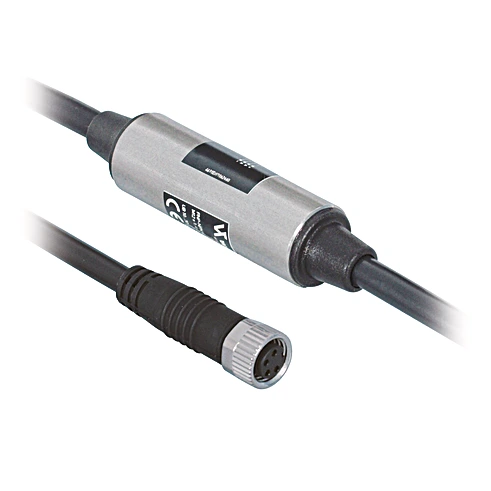

Wenglor BG7V1P-N-2M PNP-NPN Converter M8 × 1; 4-pin

Features

• High protection class IP67
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 2 mA
• Switching Output/Switching Current: 200 mA
• Switching Frequency: 5 kHz
• Response Time: 100 µs
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Connection 1: Socket, straight

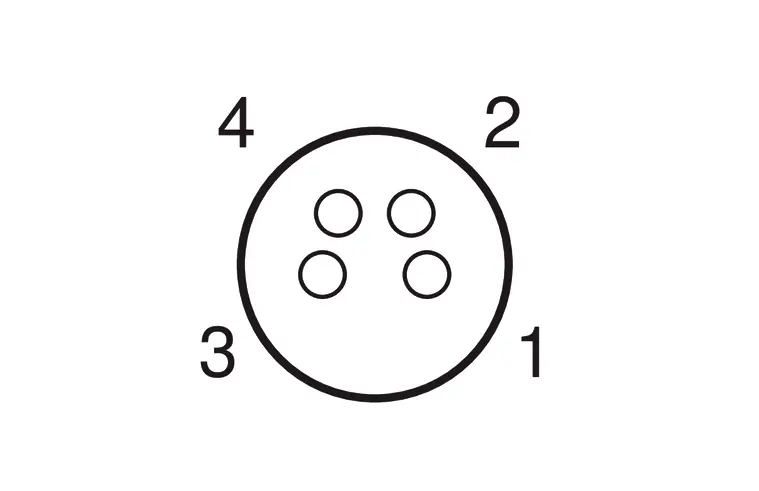

• Connection mode 1: M8 × 1, 4-pin
• Connection 2: stripped
• Torque: M8: 0,4 Nm
• Cable length (L): 2 m
• Outer diameter (d): 4.8 mm
• Wire cross-section: 0.25 / 0.34 mm²
• Degree of Protection: IP67
• Temperature Range: 14°F to 140°F
• Cable Jacket Material: PVC
• Material Wire Insulation: Plastic, PVC
• Material Sleeve Nut: Brass, nickel-plated
• Weight: 129 g
• Scope of delivery: 1 × PNP-NPN converter
• Packaging unit: 1 Piece
