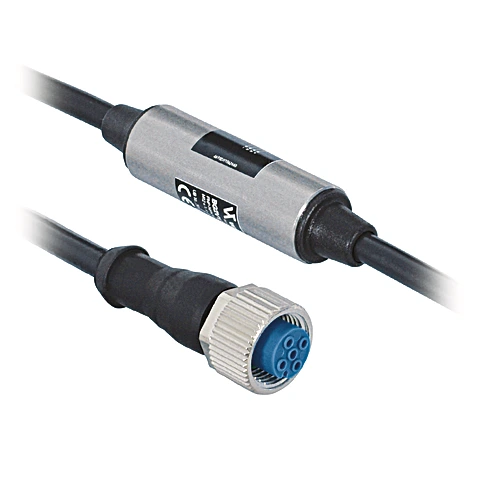

Wenglor BG2V1P-N-2M PNP-NPN Converter M12 × 1; 4-pin

PNP-NPN Converter M12 × 1; 4-pin.

$75.20
Part Number
  • BG2V1P-N-2M
Highlights...

Features

  • High protection class IP67
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 2 mA
  • Switching Output/Switching Current: 200 mA
  • Switching Frequency: 5 kHz
  • Response Time: 100 µs
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Connection 1: Socket, straight

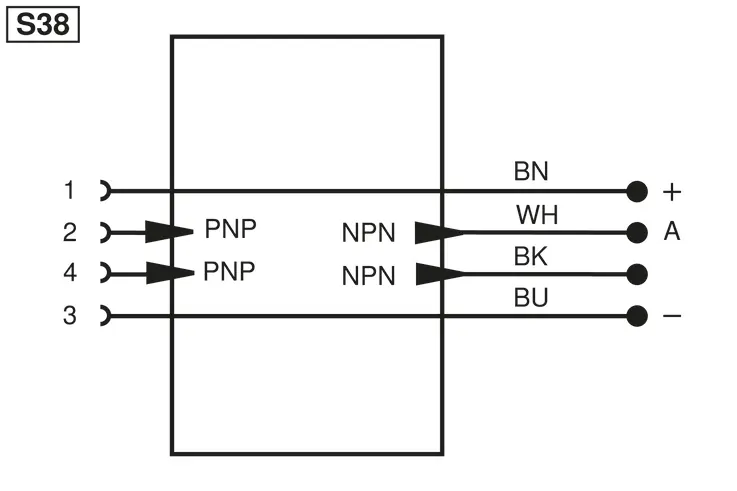

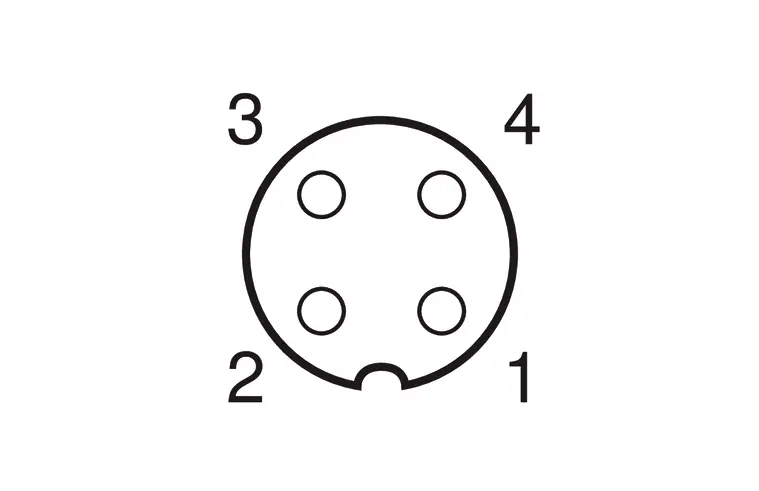

  • Connection mode 1: M12 × 1, 4-pin
  • Connection 2: stripped
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 5 mm
  • Wire cross-section: 0.34 mm²
  • Degree of Protection: IP67
  • Temperature Range: 14°F to 140°F
  • Cable Jacket Material: Plastic, PVC
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 130 g
  • Scope of delivery: 1 × PNP-NPN converter
  • Packaging unit: 1 Piece
