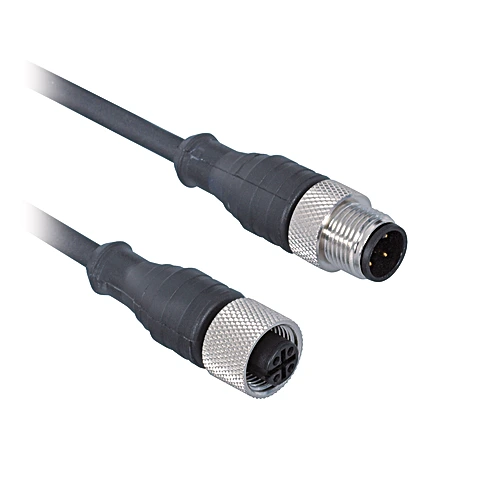

Wenglor BG2SG2V3-06M Connection Cable M12 × 1; 4-pin

Features

• PUR, halogen free
• Socket M12 × 1, straight
• Plug M12 × 1, straight
• Connection 1: Socket, straight
• Connection mode 1: M12 × 1, 4-pin
• Connection 2: Plug, straight
• Connection mode 2: M12 × 1, 4-pin
• Torque: M12: 0,5 Nm
• Coding: A-coding
• Cable length (L): 600 mm
• Outer diameter (d): 4.7 mm
• Wire cross-section: 0.34 mm²
• Degree of Protection: IP67
• Temperature Range: -13°F to 176°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PP
• Material Sleeve Nut: Brass, nickel-plated
• Halogen-free: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): > 5 × d
• Bending radius (used in motion): > 10 × d
• Travel speed (with 5 m horizontal travel distance): ≤ 3,3 m/s
• Acceleration: ≤ 5 m/s²
• Bending cycles: > 2000000
• Weight: 45 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
