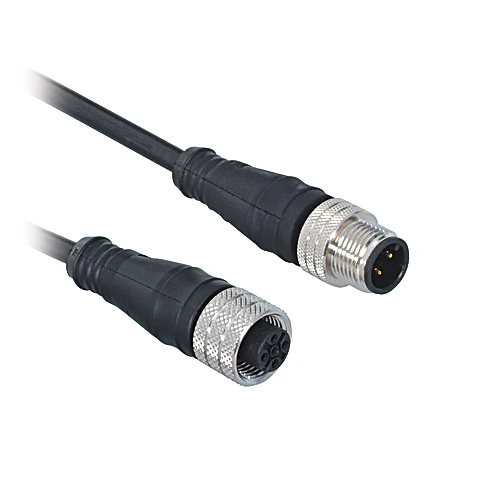

Wenglor BG2SG2V1-2M Connection Cable M12 × 1; 4-pin

Connection Cable M12 × 1; 4-pin.

$29.90
Part Number
  • BG2SG2V1-2M
Highlights...

Features

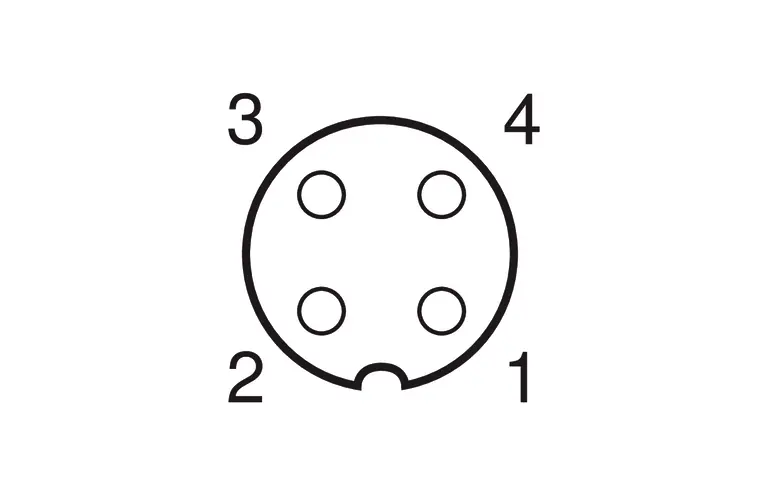

  • Socket M12 × 1, straight

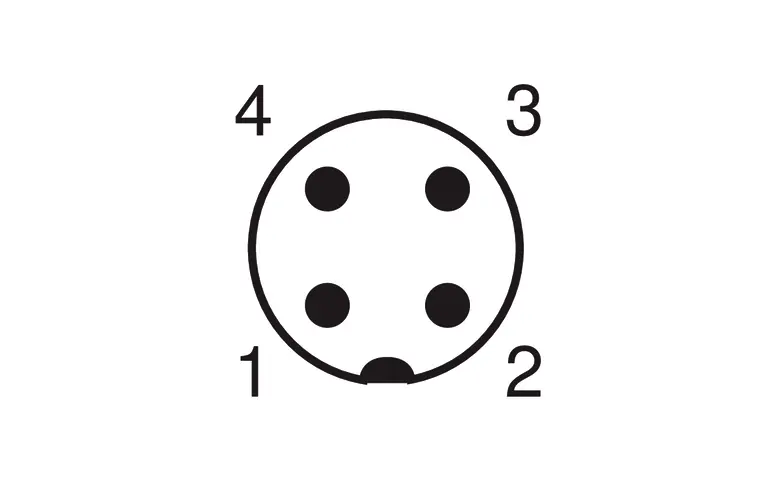

  • Plug M12 × 1, straight
  • Connection 1: Socket, straight
  • Connection mode 1: M12 × 1, 4-pin
  • Connection 2: Plug, straight
  • Connection mode 2: M12 × 1, 4-pin
  • Torque: M12: 0,8 Nm
  • Coding: A-coding
  • Cable length (L): 2 m
  • Outer diameter (d): 5 mm
  • Wire cross-section: 0.25 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 176°F
  • Cable Jacket Material: Plastic, PVC
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass
  • Weight: 96 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
