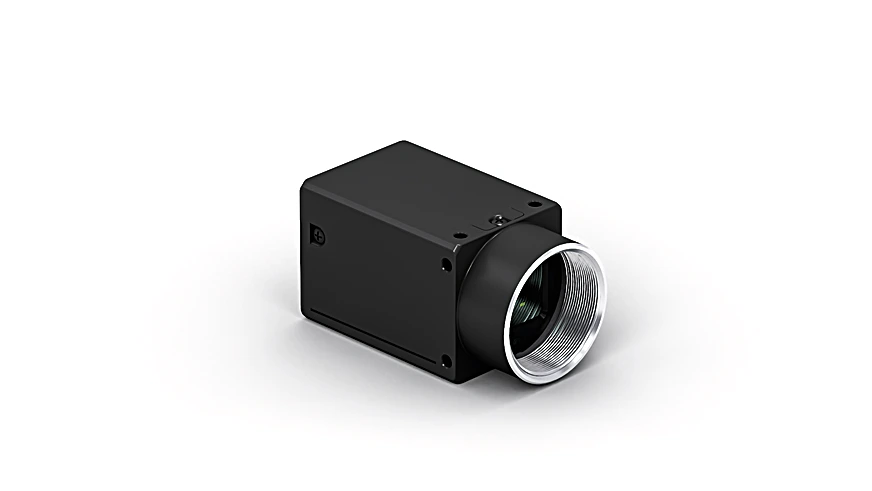

Wenglor BBZK002 Machine Vision Camera

Features

• Image chip with Global Shutter for dynamic applications
• Different lenses can be adapted thanks to standard thread

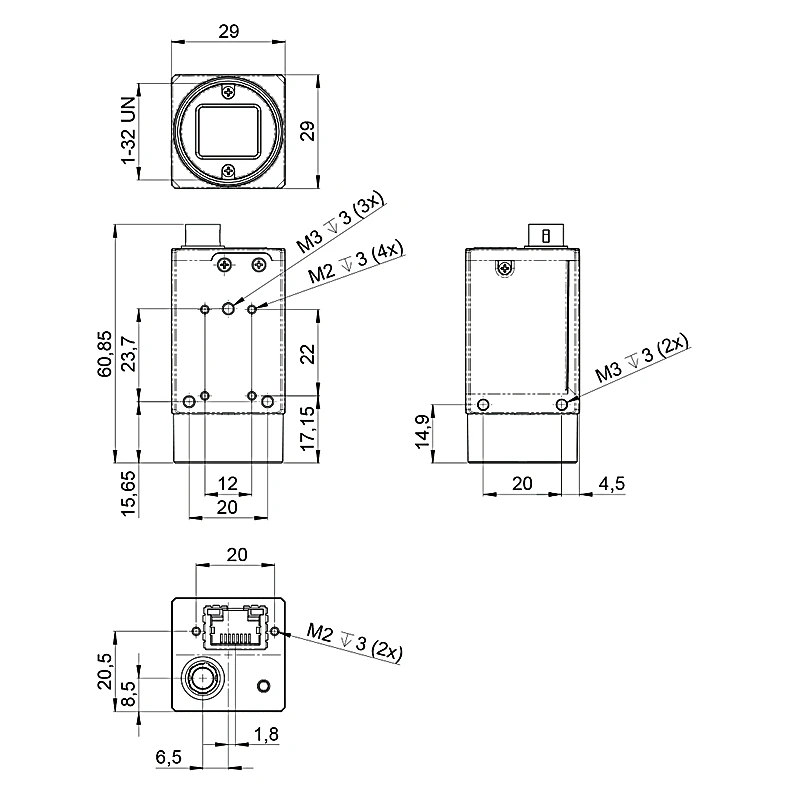

• Compact and robust housing in 29 × 56.5 × 29 mm format
• Flexible mounting options from 4 sides
• Resolution: 1,440 × 1,080 Pixel
• Resolution: 1.6 MP
• Aspect Ratio: 4:3
• Pixel Size: 3.45 × 3.45 µm
• Sensor Type: CMOS
• Sensor Designation: Sony IMX296
• Image Chip: color
• Image chip size: 1/2,9''
• Frame rate (fullframe): < 65.2 fps
• Supply Voltage: 9 to 24 V DC
• Current Consumption (Ub = 24 V): < 130 mA
• Temperature Range: -22°F to 140°F
• Storage temperature: -22°F to 158°F
• Atmospheric humidity: 20 to 95 %
• Number of GPIOs (general purpose I/Os): 1
• GPIO voltage range: 0 to 24 V DC
• GPIO maximum output current: 25 mA
• GPIO protective circuit: no
• Number of Flash Outputs: 1
• Flash Output: Optoisolator
• Number of trigger inputs: 1
• Trigger Input: Optoisolator
• Short Circuit Protection: no
• Overload Protection: no
• Supported PoE Classes: 2
• Supported PoE Standard: IEEE802.3af
• Protection Class: III
• Lens thread: C-Mount
• Housing Material: Aluminum, powder-coated
• Optic Cover: Glass
• Degree of Protection: IP40

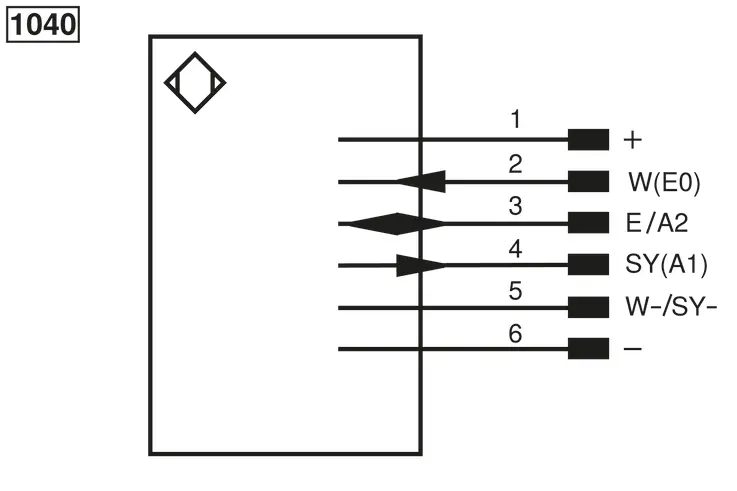

• Connection: HR10; 6-pin

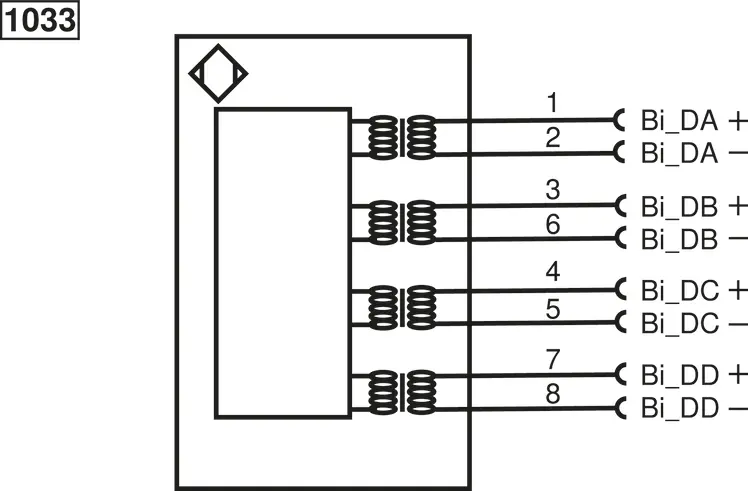

• Type of Connection Ethernet: RJ45, 8-pin
• Weight: 103 g
• Global Shutter: yes
• Ethernet: yes
• PoE: yes
• Complementary Products: Lens, Illumination Technology, Control Unit BB1C, EHSS001 Switch, Software
