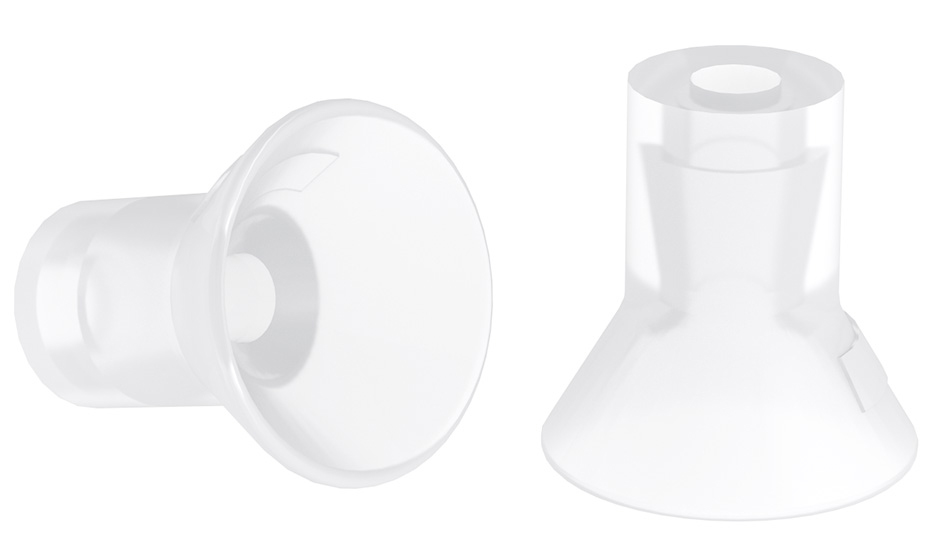

Piab D50.21.05AC / 9909677 Suction cup D50 Silicone FCM, 1/4" NPT male, with mesh filter

The material is approved by FDA (FDA 21 CFR 177.2600) and meets EU's regulation EU 1935/2004. The cup is transparent with no addition of pigments. Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable for use on flat s.

$34.21
Part Numbers
  • D50.21.05AC
  • 9909677
Highlights...

Features

  • The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004 & EU 1935/2004.
  • Suitable for objects with curved or irregular surfaces.
  • Grips around corners and edges.
  • Material Temperature Max: 392 °F
  • Fitting Size: 1/4" mm.
  • Curve Radius (Min): 25 mm.
  • Movement Vertical (Max): 8 mm.
View other configurations.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 36 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 78 N Vertical to the Surface
90 -kPa 98 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 29.9 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 42.6 N Parallel to the Surface
90 -kPa 47.4 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Good
Oil Poor
Weather Ozone Excellent
Hydrolysis Fair
Petrol Poor
Concentrated Acids Poor
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Excellent

General Accessories

Piab 05AG / 0101154 Fitting 1/8" NPSF female, 50, with mesh filter
Piab 05AG / 0101154 Fitting 1/8" NPSF female, 50, with mesh filter

A variety of fittings for suction cups.

$11.72
Piab 05AB / 3250092 Fitting G1/4" male, 50, with mesh filter
Piab 05AB / 3250092 Fitting G1/4" male, 50, with mesh filter

A variety of fittings for suction cups.

$13.93

Spares

Piab D50.21 / 0200445 Suction cup D50 Silicone FCM
Piab D50.21 / 0200445 Suction cup D50 Silicone FCM

The material is approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004. The cup is transparent with no addition of pigments. Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable for use on fla.

$19.75
Piab 05AC / 3250094 Fitting 1/4" NPT male, with mesh filter
Piab 05AC / 3250094 Fitting 1/4" NPT male, with mesh filter

$9.70
