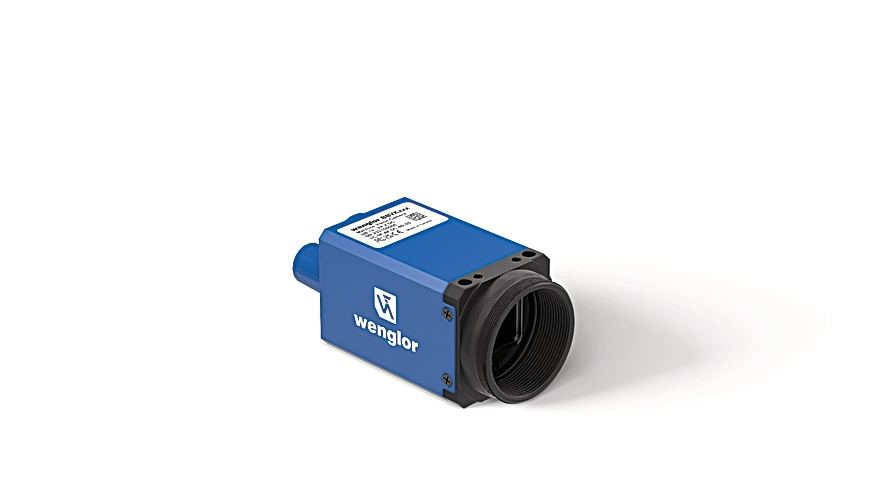

Wenglor BBVK004 Machine Vision Camera

Machine Vision Camera.

$3,636.00
Part Number
  • BBVK004
Highlights...

Features

  • Image chip with Global Shutter for dynamic applications
  • Flexible mounting options from 4 sides

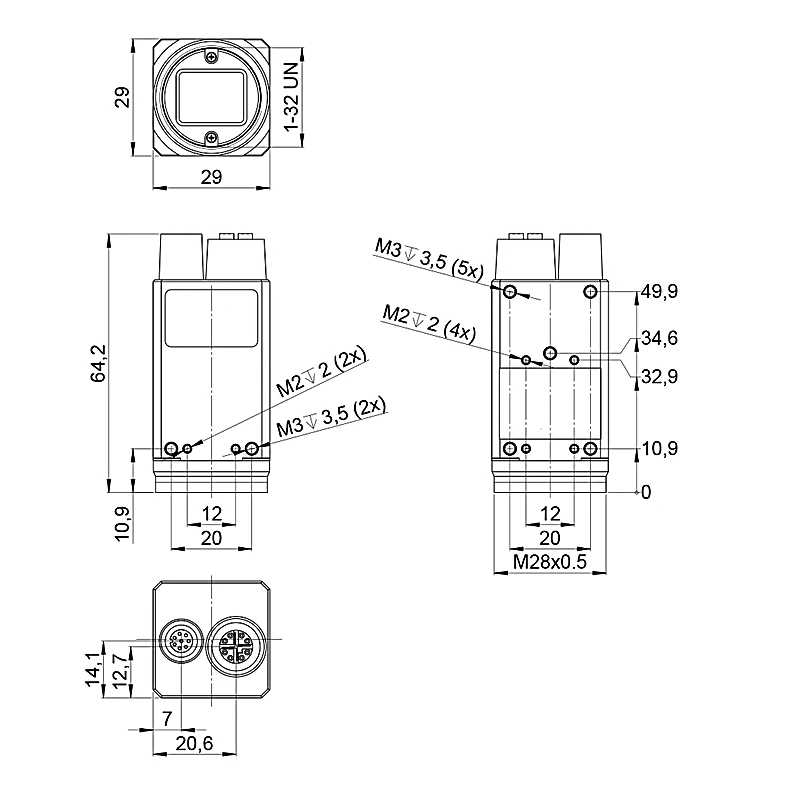

  • Compact and robust housing in 29 × 64.4 × 29 mm format
  • Different lenses can be adapted thanks to standard thread
  • Resolution: 2,448 × 2,048 Pixel
  • Resolution: 5 MP
  • Pixel Size: 2.74 × 2.74 µm
  • Sensor Type: CMOS
  • Sensor Designation: Sony IMX547
  • Image Chip: color
  • Image chip size: 1/1,8"
  • Frame rate (fullframe): < 22 fps
  • Supply Voltage: 12 to 24 V DC
  • Current Consumption (Ub = 24 V): < 130 mA
  • Temperature Range: -4°F to 131°F
  • Storage temperature: -22°F to 140°F
  • Atmospheric humidity: 20 to 95 %
  • Number of GPIOs (general purpose I/Os): 2
  • Number of Flash Outputs: 1
  • Flash Output: Optoisolator
  • Number of trigger inputs: 1
  • Trigger Input: Optoisolator
  • Supported PoE Standard: IEEE802.3af
  • Lens thread: C-Mount
  • Housing Material: Aluminum, powder-coated
  • Optic Cover: Glass
  • Degree of Protection: IP67

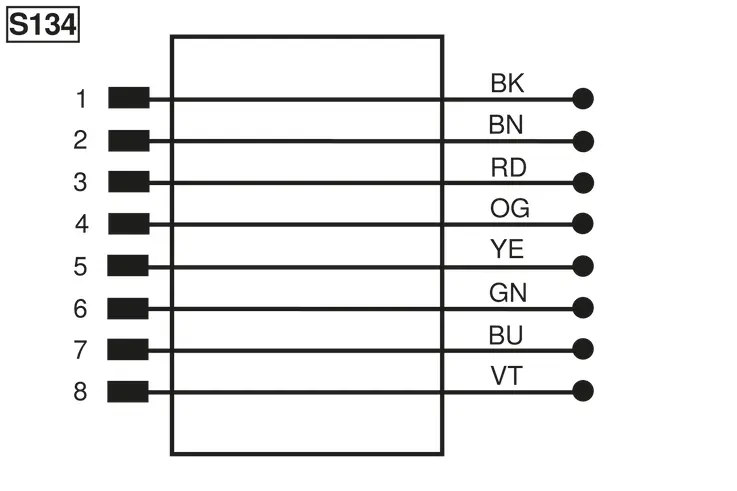

  • Connection: M8 × 1; 8-pin
  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Weight: 67 g
  • Global Shutter: yes
  • PoE: yes
  • Ethernet: yes
  • GigE: yes
  • Complementary Products: Illumination Technology, Machine Vision Controller MVC, Lens, Software, EHSS001 Switch, ZBVG protective tube

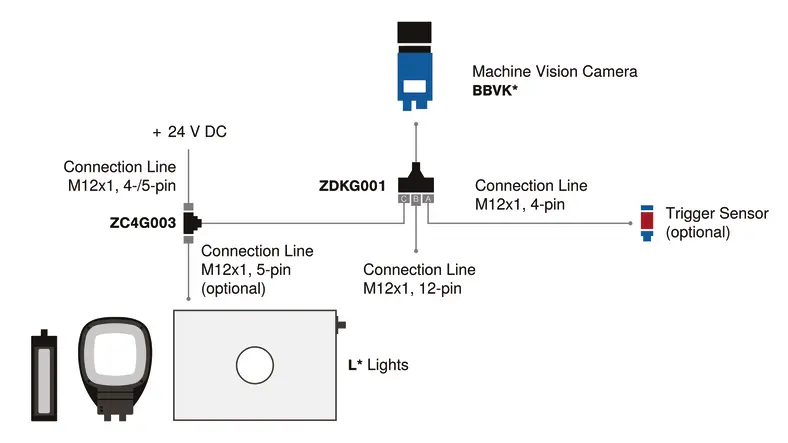

Machine Vision Cameras make it possible to record images in vision applications. The images are read out via a 1-gigabit Ethernet interface. The camera can be connected via a PoE port so that only one cable is required. The small and rugged housing and the C mount threaded connection can be easily and flexibly integrated. State-of-the-art CMOS sensor technology ensures high resolution and optimum image quality without noise even in difficult lighting conditions.
