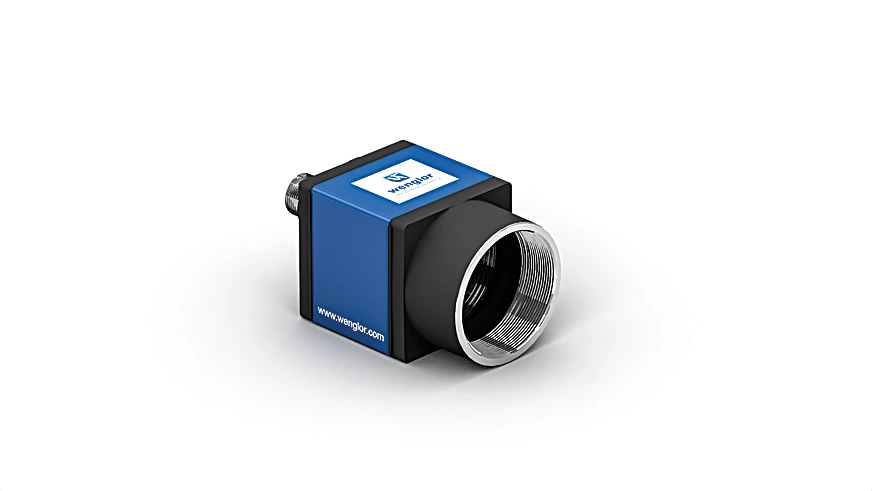

Wenglor BB6K002 Machine Vision Camera

Machine Vision Camera.

$3,261.00
Part Number
  • BB6K002
Highlights...

Features

  • Image chip with Global Shutter for dynamic applications

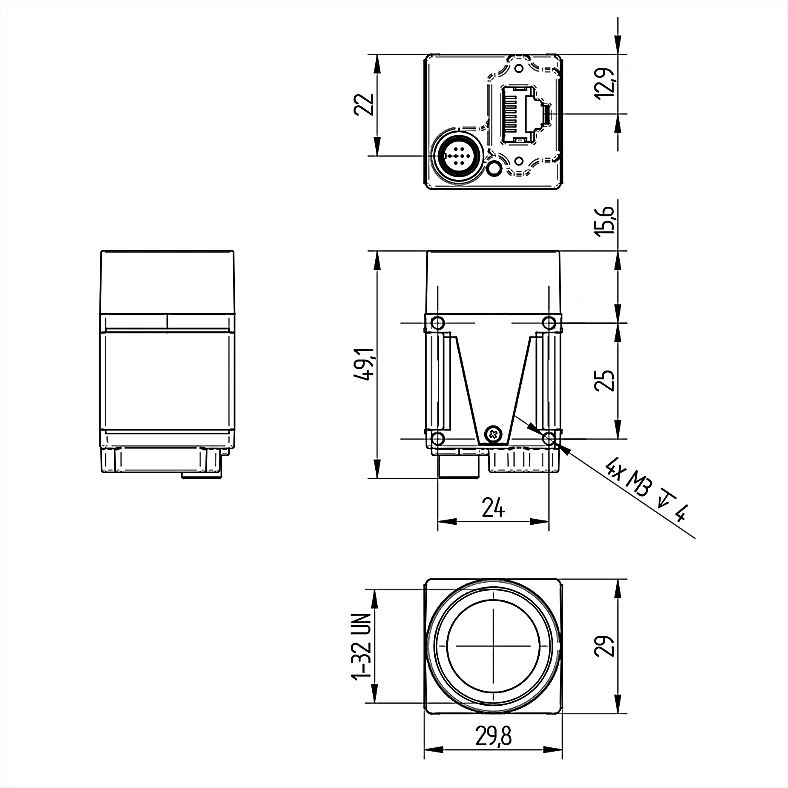

  • Compact and robust aluminum housing in 29 × 49.1 × 29 mm format
  • Different lenses can be adapted thanks to standard thread
  • Resolution: 1,456 × 1,088 Pixel
  • Resolution: 1.6 MP
  • Aspect Ratio: 4:3
  • Pixel Size: 3.45 × 3.45 µm
  • Sensor Type: CMOS
  • Sensor Designation: Sony IMX273LQR-C
  • Image Chip: color
  • Image chip size: 1/3"
  • Frame rate (fullframe): < 76 fps
  • Supply Voltage: 12 to 24 V DC
  • Current Consumption (Ub = 24 V): < 130 mA
  • Temperature Range: 32°F to 131°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: 20 to 80%
  • Number of GPIOs (general purpose I/Os): 2
  • GPIO voltage range: 0 to 3.3 V DC
  • GPIO maximum output current: 8 mA
  • GPIO protective circuit: no
  • Number of Flash Outputs: 1
  • Flash Output: Optoisolator
  • Number of trigger inputs: 1
  • Trigger Input: Optoisolator
  • Short Circuit Protection: no
  • Overload Protection: no
  • Supported PoE Classes: 2
  • Supported PoE Standard: IEEE802.3af, IEEE802.at
  • Protection Class: III
  • Lens thread: C-Mount
  • Housing Material: Aluminum, powder-coated
  • Optic Cover: Glass
  • Degree of Protection: IP30

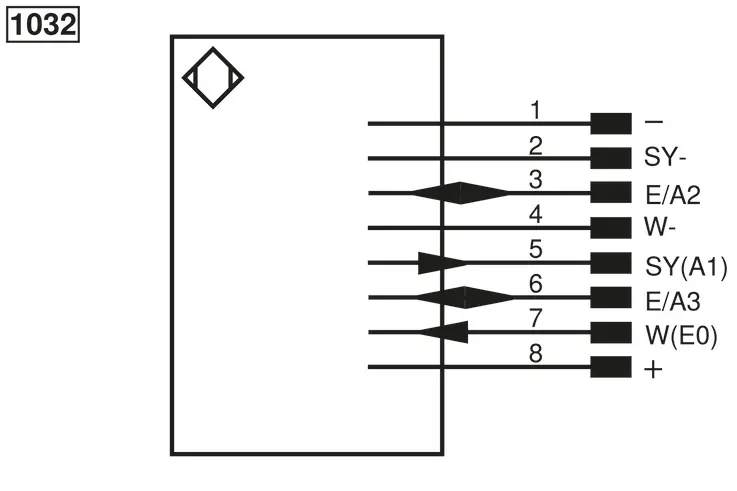

  • Connection: HR25, 8-pin

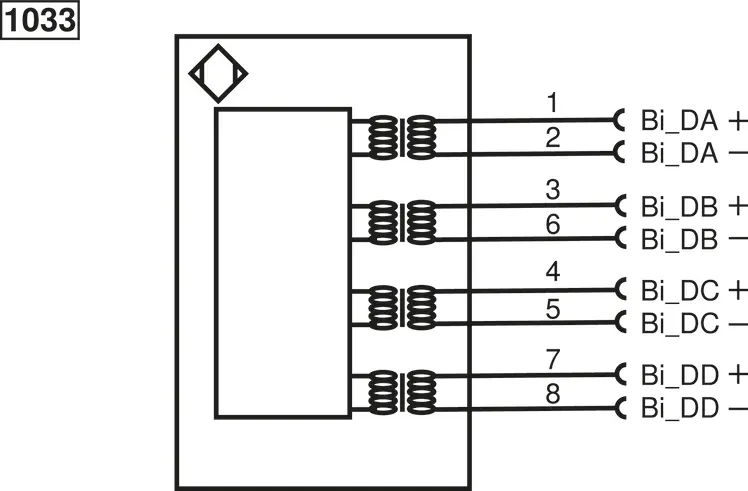

  • Type of Connection Ethernet: RJ45, 8-pin
  • Weight: 49 g
  • Diagnostic Coverage (DC): 0 %
  • MTTFd (EN ISO 13849-1): 90.29 a
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Global Shutter: yes
  • Subsampling: yes
  • Ethernet: yes
  • PoE: yes
  • Complementary Products: Lens, Illumination Technology, Control Unit BB1C, EHSS001 Switch, Software
Machine Vision Cameras make it possible to record images in vision applications. The images are read out via a 1-gigabit Ethernet interface. The camera can be connected via a PoE port so that only one cable is required. The small and rugged aluminum housing as well as the C-mount threaded connection can be easily and flexibly integrated. The high-performance Sony Pregius image chip ensures high frame rates, optimum image quality without noise under difficult lighting conditions and extremely sharp images even in dynamic applications thanks to Global Shutter.
