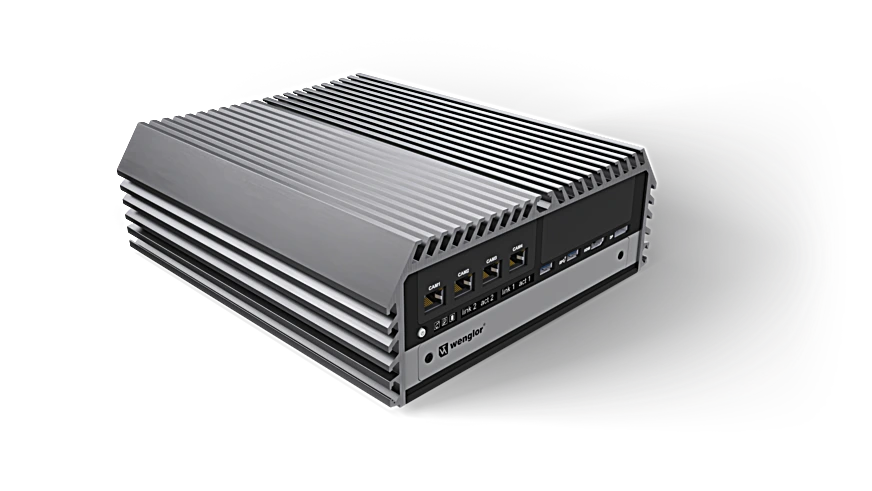

Wenglor BB1C504 Control Unit uniVision Image Extended
Control Unit uniVision Image Extended.
Overview
Features
- Wear and noise reduction thanks to passive, fanless cooling
- Control unit with uniVision Image Extended software installed

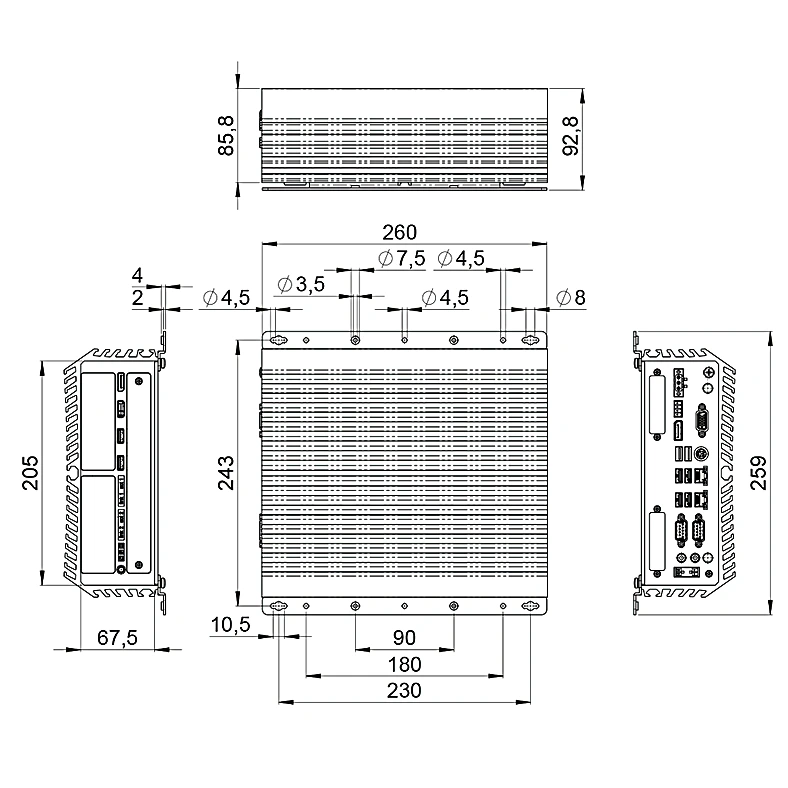

- Compact housing in 86 × 227 × 260 mm format
- Configurable uniVision software for evaluating images from machine vision cameras
- Supply Voltage: 9 to 48 V DC
- Current Consumption (Ub = 24 V): < 5 A
- Temperature Range: 32°F to 113°F
- Number of RJ45 Industrial Ethernet ports: 2
- Number of USB 2.0 interfaces: 2
- Number of USB 3.0 interfaces: 6
- Number of Gigabit Ethernet RJ45: 2
- Number of display port interfaces: 2
- Number of VGA ports: 1
- Number of HDMI ports: 1
- Number of PS/2 ports: 1
- Housing Material: Aluminum, anodised
- Degree of Protection: IP40
- Wall mounting: yes
- Weight: 5,133 g
- Software: uniVision 2
- License package: uniVision Image Extended
- Processor: Intel® Core i7
- Clock Frequency: 4.4 GHz
- RAM: 16 GB
- Hard disk: 128 GB SSD
- Linux: yes
- Ethernet: yes
- PROFINET-I/O, CC-C: yes
- EtherNet/IP™: yes
- USB Interface: yes
- PS/2 (mouse/key pad): yes
- VGA Connection: yes
- Display port connection: yes
- Complementary Products: Monitor ZNNG026, Key Pad Z0044, EHSS001 Switch, Control unit license upgrade, BBZK machine vision camera
Description
The control unit is a CPU for evaluating data from image processing products. Its compact design ensures the necessary flexibility for easy, space-saving installation, for example in a control cabinet or on a wall. Quick initial start-up is made possible by the pre-installed software. Various standard interfaces are available for the output of results. An extensive range of optional accessories is also available including monitor, keyboard and switch.
