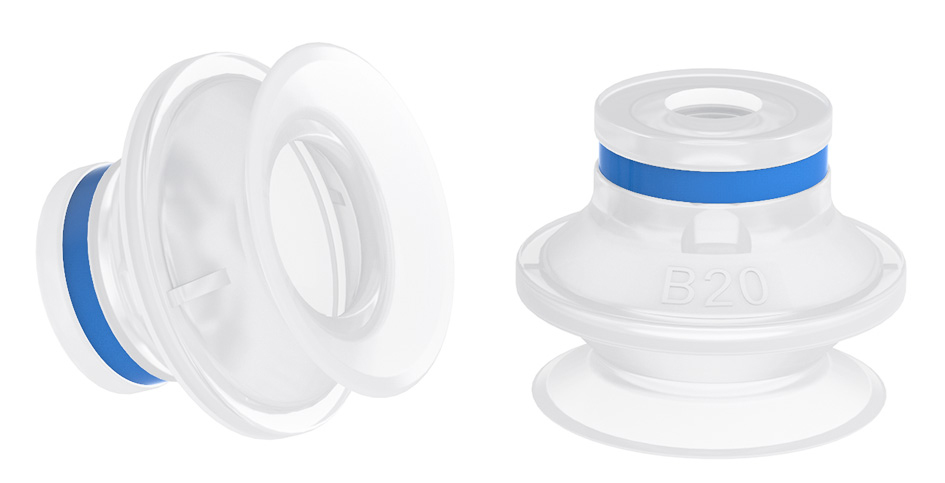

Piab B20.21.02AC / 9909657 Suction cup B20 Silicone FCM, 1/8" NPT male, with mesh filter

Piab’s FDA/EU approved silicone bellow suction cups are engineered for safe and hygienic handling in food, pharmaceutical, and sensitive applications. Made from high-quality, compliant silicone, these cups offer exceptional flexibility and a gentle grip. .

$22.78
Part Numbers
  • B20.21.02AC
  • 9909657
Highlights...

Features

  • The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
  • Suitable for level adjustment.
  • Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
  • Fitting Size: 1/8" mm.
  • Curve Radius (Min): 10 mm.
  • Movement Vertical (Max): 10 mm.
View other configurations.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 5.9 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 9.8 N Vertical to the Surface
90 -kPa 14 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 2.9 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 5.4 N Parallel to the Surface
90 -kPa 8.22 N Parallel to the Surface

General Accessories

Piab 02AF / 0101152 Fitting G1/8" male/M5 female, with mesh filter
Piab 02AF / 0101152 Fitting G1/8" male/M5 female, with mesh filter

A variety of fittings for suction cups.

$11.72
Piab 02AB / 3250085 Fitting G1/8" male, with mesh filter
Piab 02AB / 3250085 Fitting G1/8" male, with mesh filter

A variety of fittings for suction cups.

$11.72

Spares

Piab B20.21 / 0200405 Suction cup B20 Silicone FCM
Piab B20.21 / 0200405 Suction cup B20 Silicone FCM

The material is approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004. Most of the cups are transparent with no addition of pigments.

$14.26
Piab 02AC / 3250088 Fitting 1/8" NPT male, with mesh filter
Piab 02AC / 3250088 Fitting 1/8" NPT male, with mesh filter

$11.72
