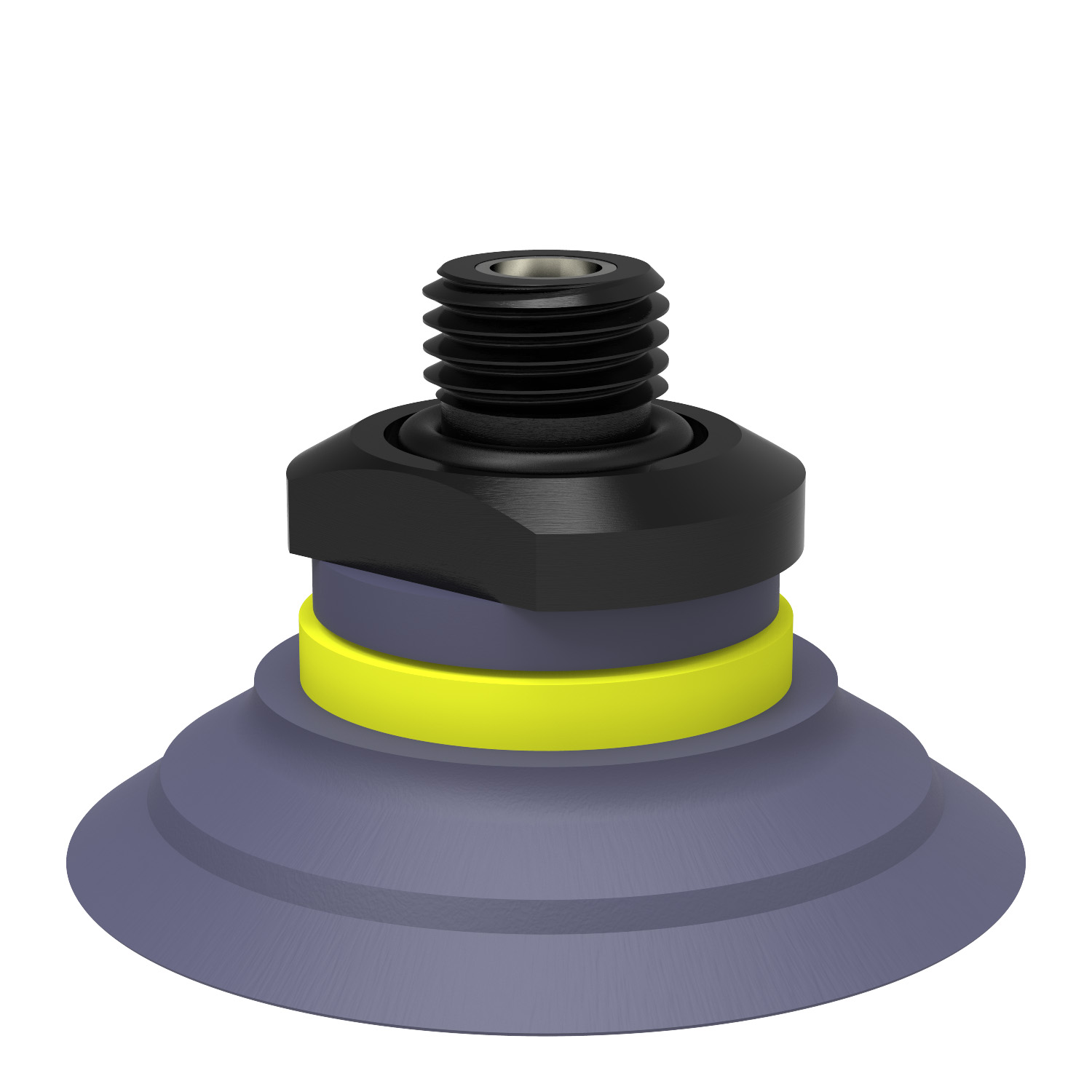

Piab F50-2.37.05DA / 9909463 Suction cup F50-2 HNBR, 1/8" NPSF female, with dual flow control valve

Piab’s HNBR flat suction cups are engineered for high-performance handling in demanding environments. Constructed from HNBR, they offer mark free handling and outstanding resistance to heat, oil, and chemicals. The flat design ensures secure and stable gr.

Available in other configurations.

Piab F50-2.37.05DA / 9909463 Suction cup F50-2 HNBR, 1/8 NPSF female, with dual flow control valve — Piab-F50-2.37.05DA

Available in XX other configurations.

$49.26

Part Numbers

F50-2.37.05DA
9909463

Highlights...

F50-2.37.05DA
By Piab
FREE Shipping on orders of $2,000 or more
Call for availability

Features

Made from high-performance, mark free, HNBR
Excellent resistance to heat, oil, and chemicals
Flat design for secure, stable handling
Recommended when the lifting force is parallel to the surface of the object.
Reliable grip on smooth surfaces
Ideal for automotive and heavy-duty industries
Material Temperature Max: 284 °F
Fitting Size: 1/8" mm.
Curve Radius (Min): 55 mm.
Movement Vertical (Max): 2.2 mm.

View other configurations.

Lifting Force Specifications

Vacuum Level	Lifting Force	Direction
20 -kPa	36 N	Vertical to the Surface
40 -kPa	0 N	Vertical to the Surface
50 -kPa	0 N	Vertical to the Surface
60 -kPa	74 N	Vertical to the Surface
90 -kPa	96 N	Vertical to the Surface
10 -kPa	0 N	Parallel to the Surface
20 -kPa	24 N	Parallel to the Surface
40 -kPa	0 N	Parallel to the Surface
60 -kPa	40 N	Parallel to the Surface
90 -kPa	50 N	Parallel to the Surface

Material Quality Specifications

Material	Quality
Wear Resistance	Excellent
Oil	Excellent
Weather Ozone	Excellent
Hydrolysis	Good
Petrol	Excellent
Concentrated Acids	Fair
Alcohol	Good
Ethanol	Not applicable
Methanol	Not applicable
Oxidation	Excellent

Spec Sheets

Piab F50-2.37.05DA Suction cup F50-2 HNBR, 1/8" NPSF female, with dual flow control valve Datasheet (268 KB)
