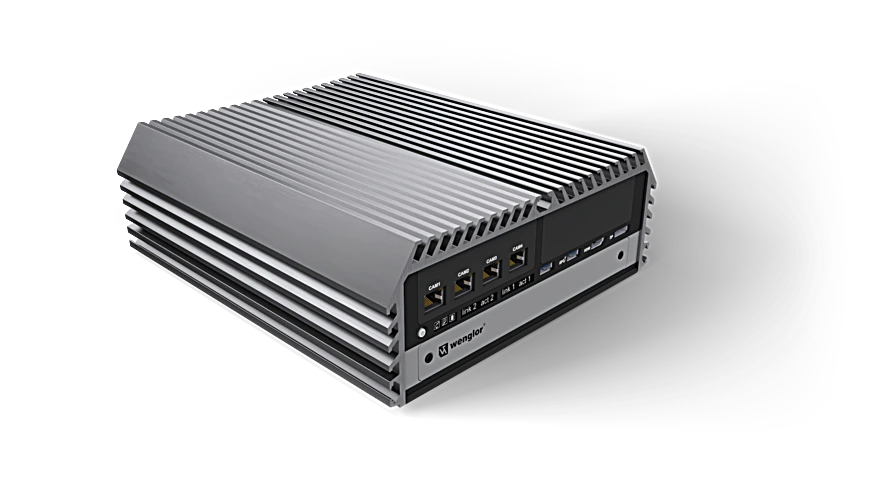

Wenglor BB1C501 Control Unit uniVision Profile

Control Unit uniVision Profile.

$11,594.00
Part Number
  • BB1C501
Highlights...

Features

  • Control unit with installed uniVision Profile software
  • Configurable uniVision software for evaluating height profiles from 2D/3D profile sensors
  • Wear and noise reduction thanks to passive, fanless cooling

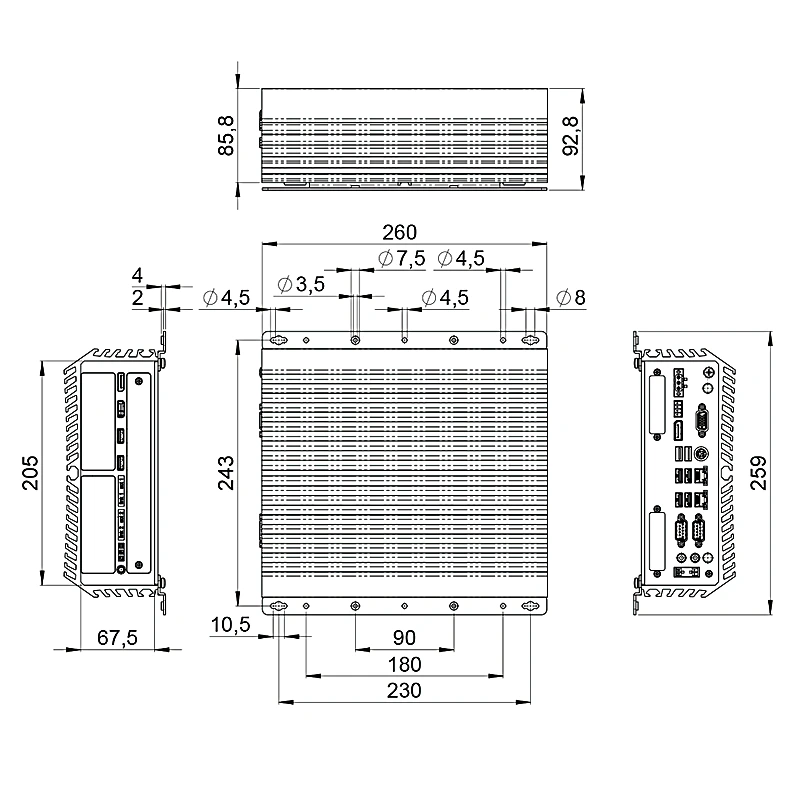

  • Compact housing in 86 × 227 × 260 mm format
  • Supply Voltage: 9 to 48 V DC
  • Current Consumption (Ub = 24 V): < 5 A
  • Temperature Range: 32°F to 113°F
  • Number of RJ45 Industrial Ethernet ports: 2
  • Number of USB 2.0 interfaces: 2
  • Number of USB 3.0 interfaces: 6
  • Number of Gigabit Ethernet RJ45: 2
  • Number of display port interfaces: 2
  • Number of VGA ports: 1
  • Number of HDMI ports: 1
  • Number of PS/2 ports: 1
  • Housing Material: Aluminum, anodised
  • Degree of Protection: IP40
  • Wall mounting: yes
  • Weight: 5,133 g
  • Software: uniVision 2
  • License package: uniVision Profile
  • Processor: Intel® Core i7
  • Clock Frequency: 4.4 GHz
  • RAM: 16 GB
  • Hard disk: 128 GB SSD
  • Linux: yes
  • Ethernet: yes
  • PROFINET-I/O, CC-C: yes
  • EtherNet/IP™: yes
  • USB Interface: yes
  • PS/2 (mouse/key pad): yes
  • VGA Connection: yes
  • Display port connection: yes
  • Complementary Products: 2D/3D Profile Sensors MLSL/MLWL, Monitor ZNNG026, Key Pad Z0044, EHSS001 Switch, Software, Control unit license upgrade
The control unit is a CPU for evaluating data from image processing products. Its compact design ensures the necessary flexibility for easy, space-saving installation, for example in a control cabinet or on a wall. Quick initial start-up is made possible by the pre-installed software. Various standard interfaces are available for the output of results. An extensive range of optional accessories is also available including monitor, keyboard and switch.
