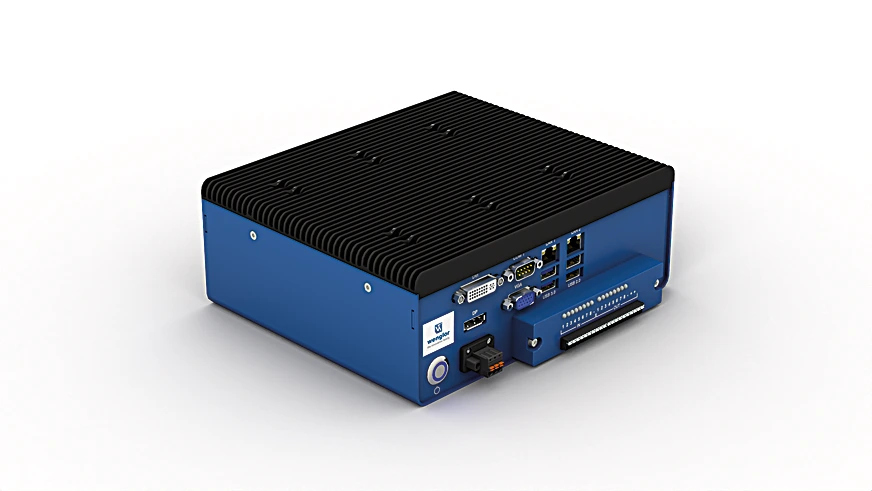

Wenglor BB1C006 Control Unit uniVision Image

Control Unit uniVision Image.

$10,218.00
Part Number
  • BB1C006
Highlights...

Features

  • Control unit with installed uniVision Image software

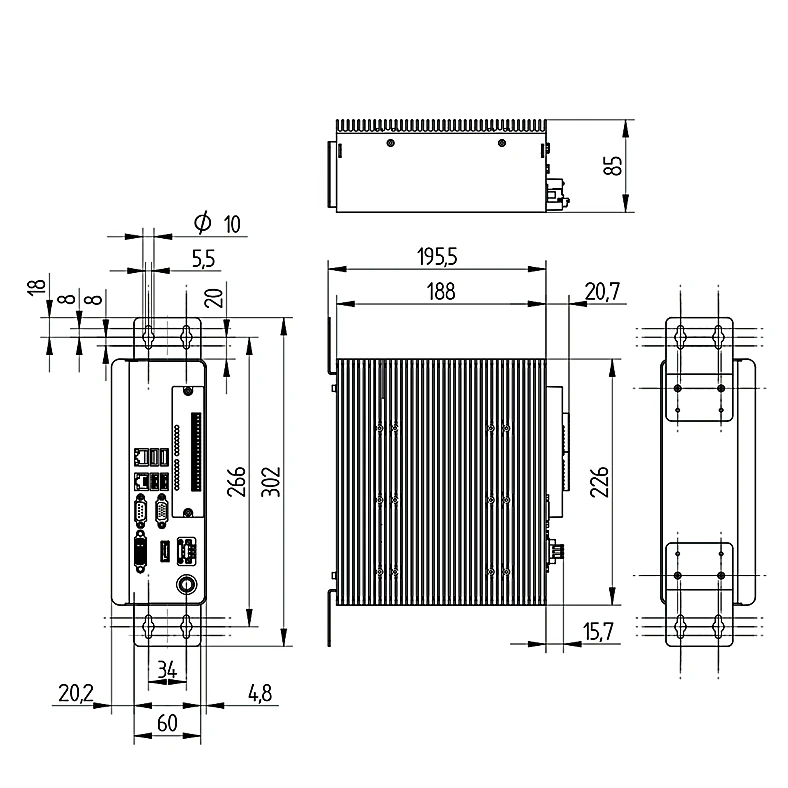

  • Compact housing in 85 × 188 × 226 mm format
  • Configurable uniVision software for evaluating images from machine vision cameras
  • Wear and noise reduction thanks to passive, fanless cooling
  • Supply Voltage: 18 to 36 V DC
  • Current Consumption (Ub = 24 V): < 1.8 A
  • Temperature Range: 32°F to 113°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Electrical Isolation: yes
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Number of Digital Inputs: 8
  • Number of USB 2.0 interfaces: 2
  • Number of USB 3.0 interfaces: 2
  • Number of Gigabit Ethernet RJ45: 2
  • Number of DVI ports: 1
  • Number of display port interfaces: 1
  • Number of VGA ports: 1
  • Protection Class: III
  • Housing Material: Steel, galvanized
  • Degree of Protection: IP50
  • Wall mounting: yes
  • Weight: 4,172 g
  • Software: uniVision 2
  • License package: uniVision Image
  • Processor: Intel® Core i3
  • Clock Frequency: 2.4 GHz
  • RAM: 4 GB
  • Hard disk: 250 GB SSD
  • Linux: yes
  • Ethernet: yes
  • USB Interface: yes
  • DVI-D port: yes
  • VGA Connection: yes
  • Display port connection: yes
  • Complementary Products: Monitor ZNNG026, Key Pad Z0044, EHSS001 Switch, Digital Camera BB6K, Control unit license upgrade
The control unit is a CPU for evaluating data from image processing products. Its compact design ensures the necessary flexibility for easy, space-saving installation, for example in a control cabinet or on a wall. Quick initial start-up is made possible by the pre-installed software. Various standard interfaces are available for the output of results. An extensive range of optional accessories is also available including monitor, keyboard and switch.
