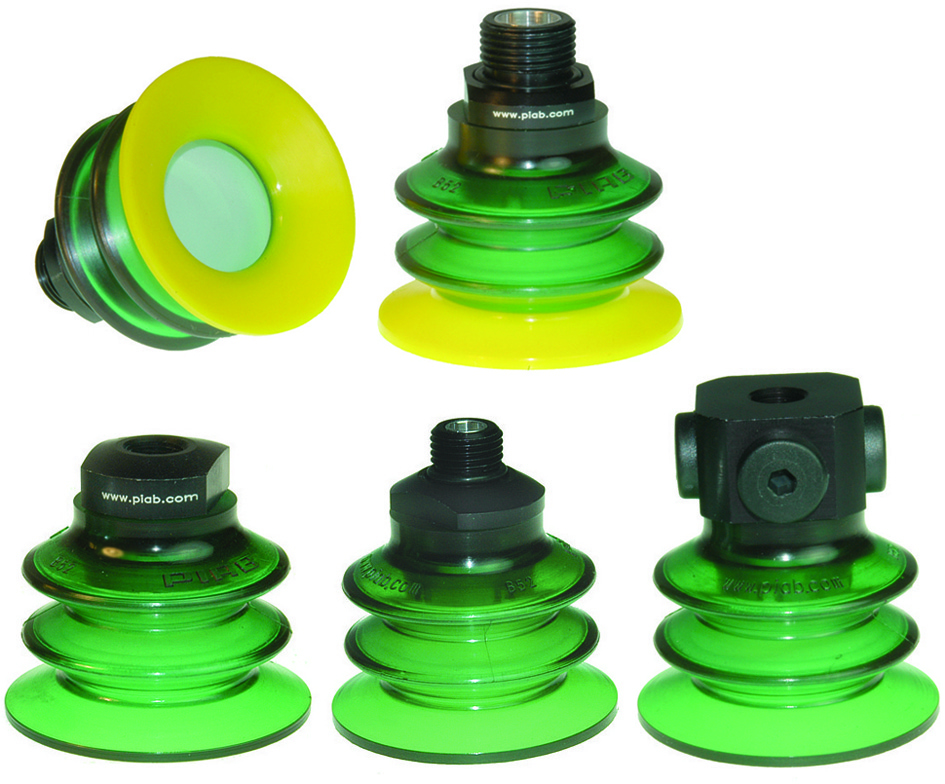

Piab BX25P.4E.02DC.F / 9909202 Vacuum Suction Cups

Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-fre.

Available in other configurations.

Piab BX25P.4E.02DC.F / 9909202 Vacuum Suction Cups — Piab-BX25P.4E.02DC.F

Available in XX other configurations.

$38.53

Part Numbers

BX25P.4E.02DC.F
9909202

Highlights...

BX25P.4E.02DC.F
By Piab
FREE Shipping on orders of $2,000 or more
Call for availability

Features

Suitable for level adjustment and for uneven and porous surfaces such as cardboard, etc.
In the two-colored suction cup the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable and, at the same time, soft and flexible.
DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
The material DURAFLEX® is mark free.
Material Temperature Max: 122 °F
Fitting Size: 1/8" mm.
Curve Radius (Min): 8 mm.
Movement Vertical (Max): 8.5 mm.

View other configurations.

Lifting Force Specifications

Vacuum Level	Lifting Force	Direction
20 -kPa	9 N	Vertical to the Surface
40 -kPa	0 N	Vertical to the Surface
50 -kPa	0 N	Vertical to the Surface
60 -kPa	14 N	Vertical to the Surface
90 -kPa	18 N	Vertical to the Surface
10 -kPa	0 N	Parallel to the Surface
20 -kPa	7 N	Parallel to the Surface
40 -kPa	0 N	Parallel to the Surface
60 -kPa	11 N	Parallel to the Surface
90 -kPa	14 N	Parallel to the Surface

Material Quality Specifications

Material	Quality
Wear Resistance	Excellent
Oil	Excellent
Weather Ozone	Excellent
Hydrolysis	Fair
Petrol	Fair
Concentrated Acids	Fair
Alcohol	Not applicable
Ethanol	Fair
Methanol	Poor
Oxidation	Poor

Spec Sheets

Piab BX25P.4E.02DC.F Vacuum Suction Cups Datasheet (359 KB)
