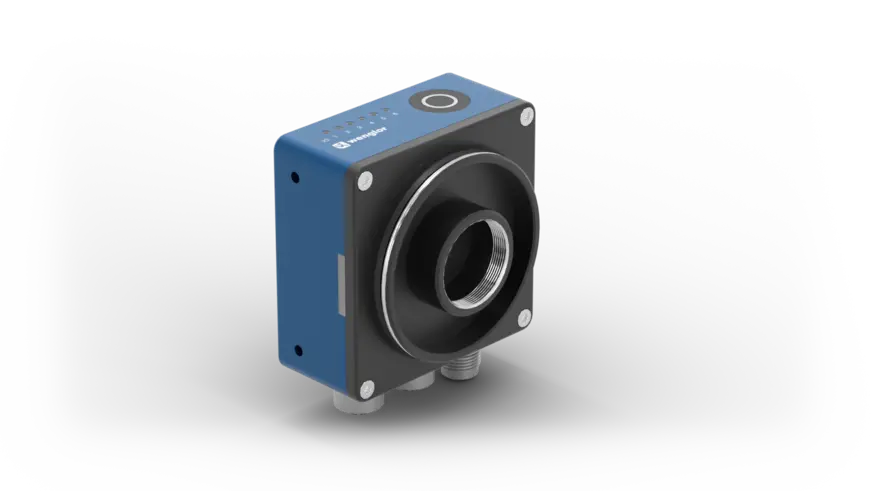

Wenglor B60P213 Smart Camera uniVision Script

Smart Camera uniVision Script.

$11,258.00
Part Number
  • B60P213
Highlights...

Features

  • Expandable, modular hardware design
  • Computing power of vision system in sensor format
  • State-of-the-art communication interfaces incl. PoE functionality
  • Condition monitoring (including position monitoring via position sensor)
  • User-friendly vision tools paired with individual programming
  • Lens thread: C-Mount
  • Resolution: 2,448 × 2,048 Pixel
  • Resolution: 5 MP
  • Image Chip: color
  • Image chip size: 1/1,8"
  • Pixel Size: 2.74 × 2.74 µm
  • Light Source: External lighting
  • Optics: C mount
  • Frame rate (fullframe): ≤ 67 fps
  • Temperature Range: 32°F to 104°F
  • Storage temperature: 32°F to 158°F
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
  • Vibration resistance per DIN EN 60068-2-64: 6 g (10 to 55 Hz)
  • Supply Voltage: 24 V DC
  • Current Consumption (Ub = 24 V): < 600 mA
  • Inputs/Outputs: 6
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: Ethernet
  • Baud Rate Ethernet: 1 Gbit/s
  • Baud Rate PROFINET: 100 Mbit/s
  • Industry protocols: PROFINET Class B, EtherNet/IP™, EtherCAT
  • General protocols: sFTP, FTP, TCP/IP, UDP
  • Protection Class: III
  • RAM: 4 GB
  • Storage Capacity: 32 GB

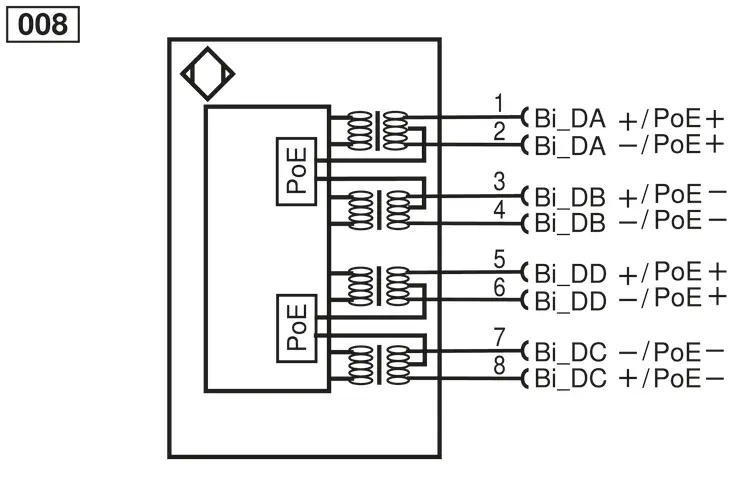

  • PoE Class: 4
  • Setting Method: Web server
  • Housing Material: Aluminum, anodised
  • Optic Cover: Glass
  • Degree of Protection: IP67
  • UL Enclosure Type: 1

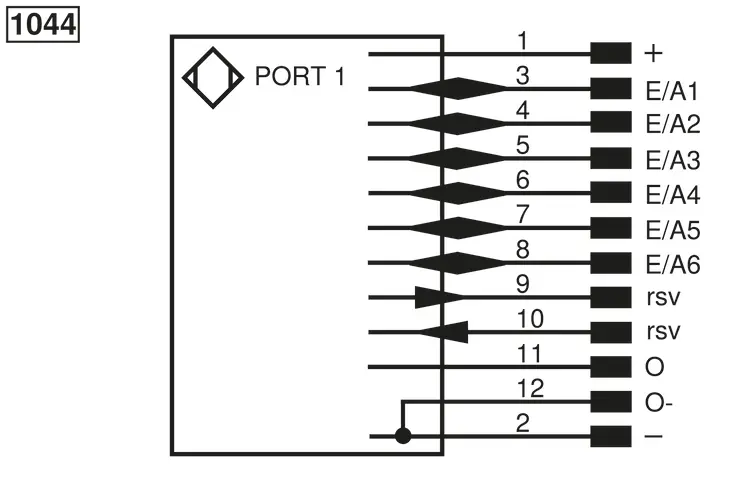

  • Connection: M12 × 1; 12-pin

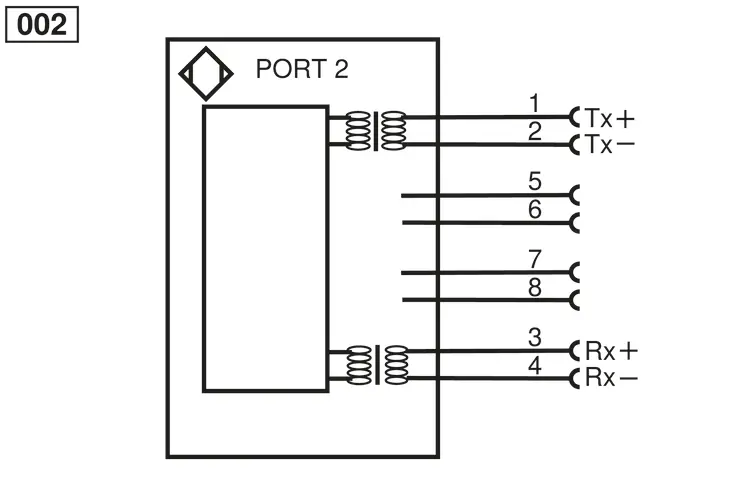

  • Type of Connection Ethernet: M12 × 1, 8-pin, X-coded (2×)
  • Weight: 264 g
  • MTTFd (EN ISO 13849-1): 174.12 a
  • Software: uniVision 3
  • License package: uniVision Script
  • PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
The Smart Camera B60 offers the functionality and performance of a full-fledged image processing system and is therefore suitable for even complex image processing applications. Image recording and evaluation by the high-performance, easy-to-use uniVision image processing software are combined in a compact and robust modular housing. Thanks to the uniVision Script license package, users can switch flexibly between parametrization and programming solutions. Seamless integration of HALCON scripts enables secure and flexible data exchange.
