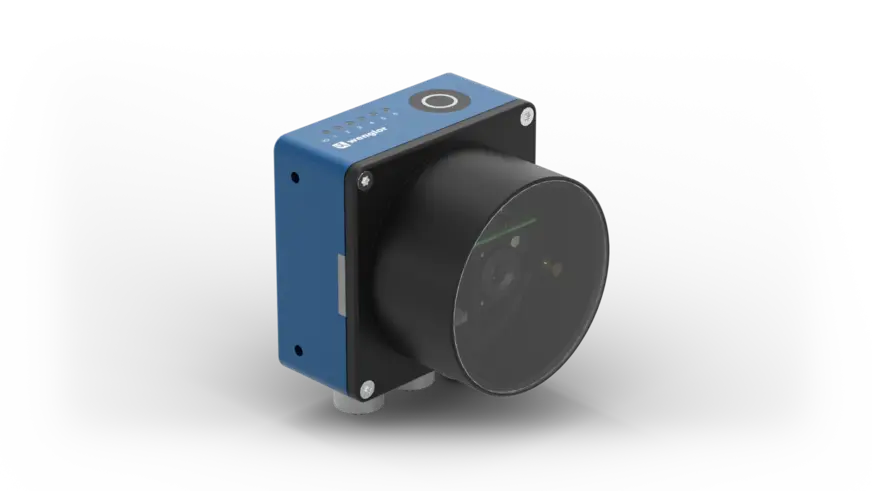

Wenglor B60M201 Smart Camera uniVision

Features

• User-friendly vision tools
• Expandable, modular hardware design
• Computing power of vision system in sensor format
• State-of-the-art communication interfaces incl. PoE functionality
• Condition monitoring (including position monitoring via position sensor)
• Working Range: > 50 mm
• Resolution: 2,448 × 2,048 Pixel
• Resolution: 5 MP
• Focal distance: 7 mm
• Image Chip: monochrome
• Image chip size: 1/1,8"
• Pixel Size: 2.74 × 2.74 µm
• Light Source: Z60F illumination module
• Optics: Auto-focus wide
• Laser Class (EN 60825-1): 1
• Frame rate (fullframe): ≤ 67 fps
• Temperature Range: 32°F to 104°F
• Storage temperature: 32°F to 158°F
• Atmospheric humidity: 5 to 95%, non-condensing
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN EN 60068-2-64: 6 g (10 to 55 Hz)
• Supply Voltage: 24 V DC
• Current Consumption (Ub = 24 V): < 700 mA
• Inputs/Outputs: 6
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Interface: Ethernet
• Baud Rate Ethernet: 1 Gbit/s
• Baud Rate PROFINET: 100 Mbit/s
• Industry protocols: PROFINET Class B, EtherNet/IP™, EtherCAT
• General protocols: sFTP, FTP, TCP/IP, UDP
• Protection Class: III
• RAM: 4 GB
• Storage Capacity: 32 GB

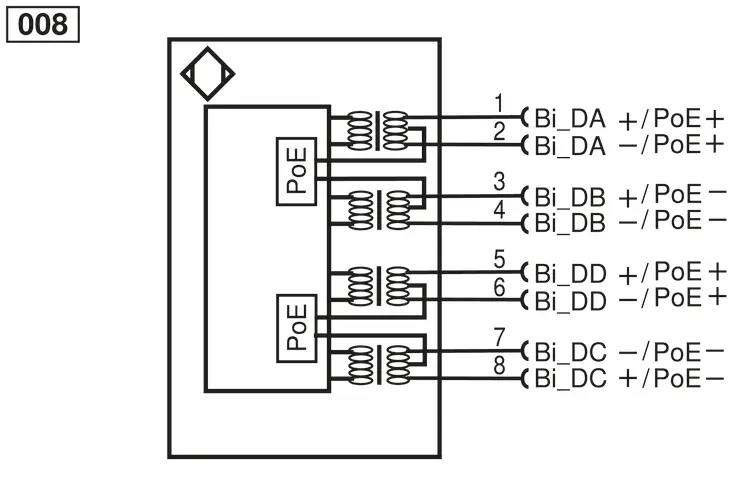

• PoE Class: 4
• Setting Method: Web server
• Minimum object distance: 50 mm
• Housing Material: Aluminum, anodised
• Optic Cover: Plastic, PMMA
• Degree of Protection: IP67
• UL Enclosure Type: 1

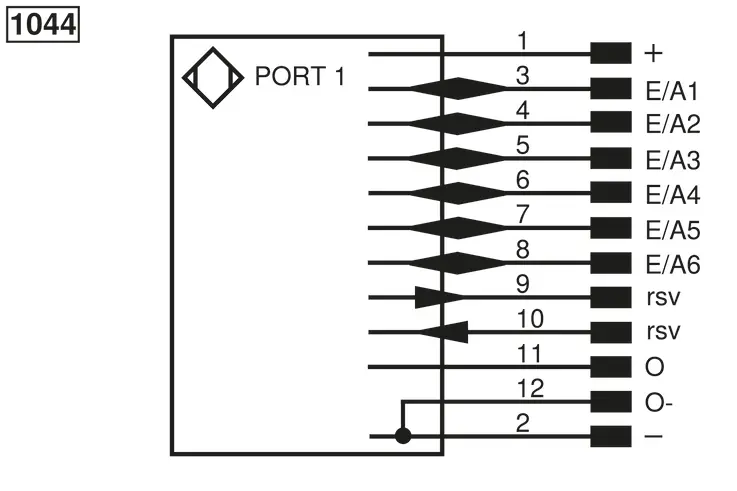

• Connection: M12 × 1; 12-pin

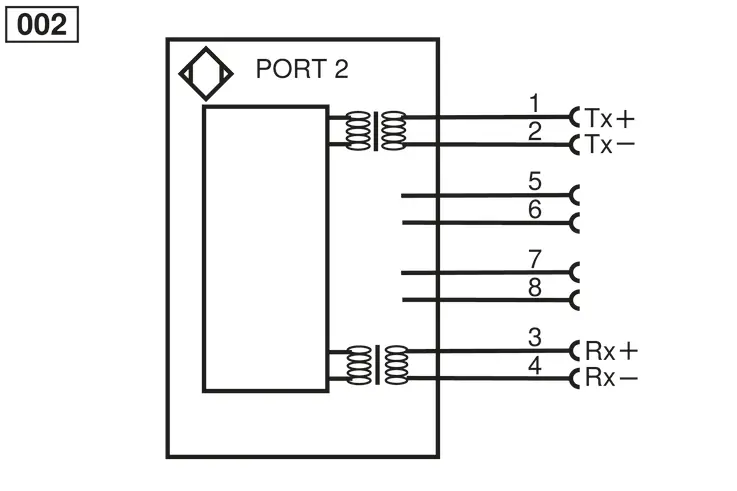

• Type of Connection Ethernet: M12 × 1, 8-pin, X-coded (2×)
• Weight: 300 g
• MTTFd (EN ISO 13849-1): 149.4 a
• Software: uniVision 3
• License package: uniVision
• Multizone Distance Sensor: yes *
• PNP NO: yes
• Output: Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
