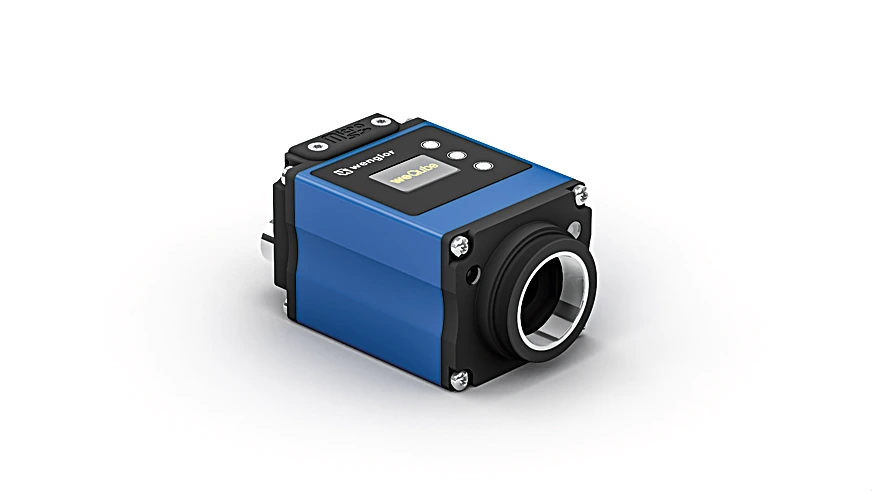

Wenglor B50S113 Vision Sensor

Vision Sensor.

$3,577.00
Part Number
  • B50S113
Highlights...

Features

  • Image processing functions
  • MultiCore technology
  • Pattern matching
  • Resolution: 736 × 480 Pixel
  • Resolution: 0.35 MP
  • Image Chip: monochrome
  • Image chip size: 1/3"
  • Pixel Size: 6 × 6 µm
  • Light Source: External lighting
  • Optics: C mount
  • Frame rate (fullframe): 25 fps
  • Temperature Range: -13°F to 131°F*
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 200 mA
  • Inputs/Outputs: 6
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: RS-232/Ethernet
  • Protection Class: III
  • Setting Method: Web server
  • Housing Material: Aluminum
  • Degree of Protection: IP67
  • UL Enclosure Type: 1
  • Connection: M12 × 1; 12-pin
  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Optic Cover: Plastic, PMMA, ABS
  • PWIS-free: yes
  • Weight: 350 g
  • MTTFd (EN ISO 13849-1): 263.03 a
  • License package: weQubeVision Standard +
  • Presence Check: yes
  • Pixel Comparison: yes
  • Reference Image Comparison: yes
  • Tracking: yes
  • Object detection: yes
  • Dimensional accuracy check: yes
  • Pattern matching: yes
  • PNP NO: yes
  • RS-232 Interface: yes
  • Ethernet: yes
  • PROFINET I/O, CC-A: yes
  • EtherNet/IP™: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
The weQube vision sensor is based on wenglor's MultiCore technology. The region of interest and tracking functions ensure optimal object sensing. The following image processing modules are available: dimensional accuracy check, sorting process, presence check, object counting, position read-out, pixel counting, pattern matching, filter options and statistics analysis.
