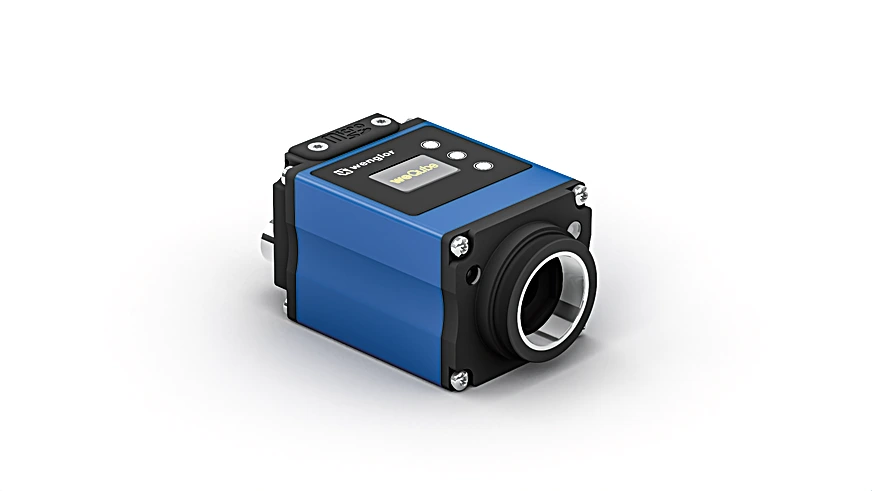

Wenglor B50S011 Vision Sensor

Vision Sensor.

$2,371.00
Part Number
  • B50S011
Highlights...

Features

  • Image processing functions
  • MultiCore technology
  • Resolution: 736 × 480 Pixel
  • Resolution: 0.35 MP
  • Image Chip: color
  • Image chip size: 1/3"
  • Pixel Size: 6 × 6 µm
  • Light Source: External lighting
  • Optics: C mount
  • Frame rate (fullframe): 15 fps
  • Temperature Range: -13°F to 131°F*
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 200 mA
  • Inputs/Outputs: 6
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: RS-232/Ethernet
  • Protection Class: III
  • Setting Method: Web server
  • Housing Material: Aluminum
  • Degree of Protection: IP67
  • UL Enclosure Type: 1
  • Connection: M12 × 1; 12-pin
  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Optic Cover: Plastic, PMMA, ABS
  • PWIS-free: yes
  • Weight: 350 g
  • MTTFd (EN ISO 13849-1): 263.03 a
  • Software: uniVision 2
  • License package: weQubeVision Standard
  • Presence Check: yes
  • Pixel Comparison: yes
  • Reference Image Comparison: yes
  • Tracking: yes
  • Object detection: yes
  • Dimensional accuracy check: yes
  • PNP NO: yes
  • RS-232 Interface: yes
  • Ethernet: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
The vision sensor weQubeVision is based on the wenglor MultiCore technology. The functions region of interest and tracking ensure optimal object detection. The following image processing modules are available: Dimensional accuracy check, sorting procedures, presence control, object counting, position output, pixel counting, filter options, and statistics evaluation. Thanks to the integrated color image chip, all image processing functions are also available for remote applications.
