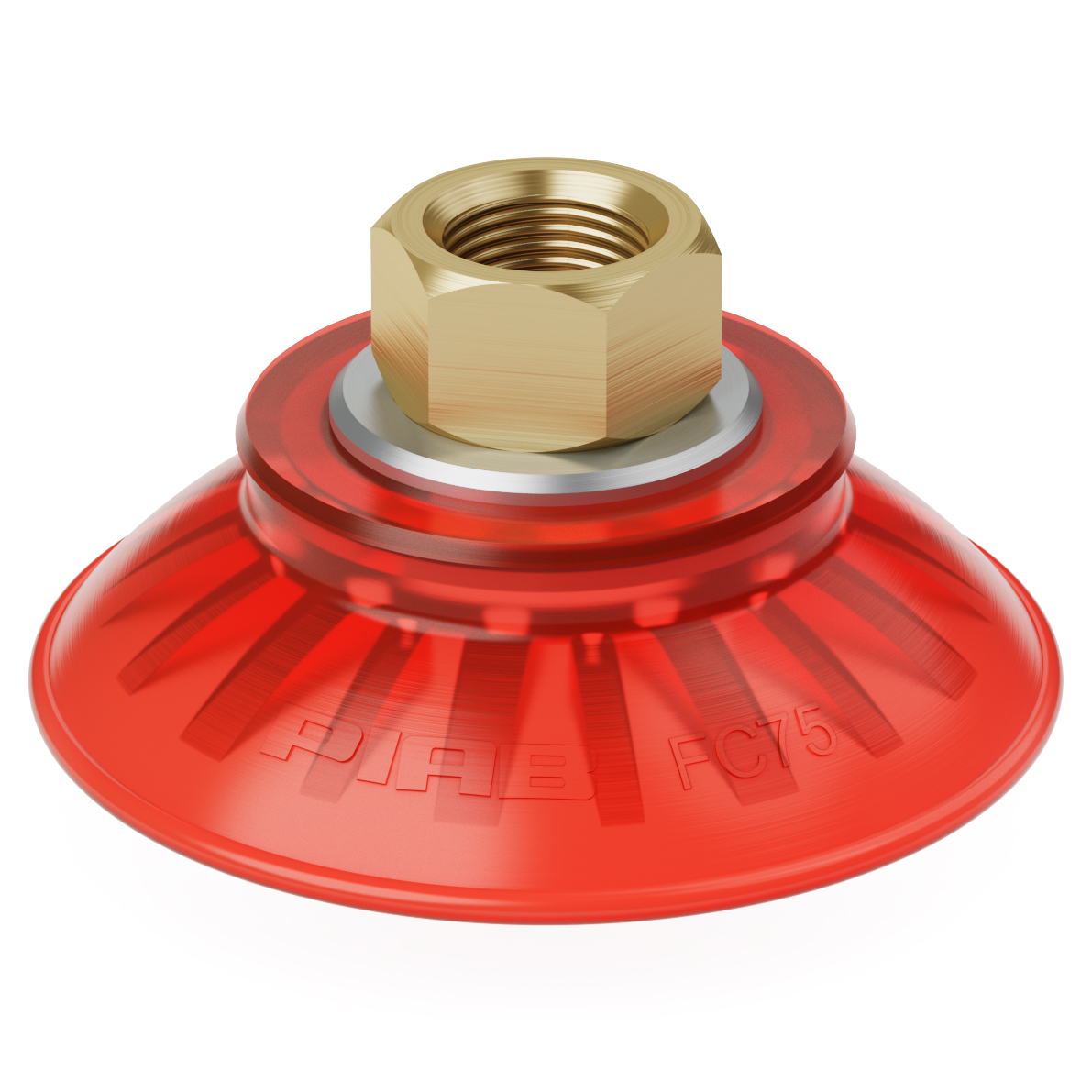

Piab FC20P.4D.02AD / 9906801 Suction cup FC20P Polyurethane 50, G1/8" male / M5 female

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened.

$18.71
Part Numbers
  • FC20P.4D.02AD
  • 9906801
Highlights...

Features

  • Suitable for lifting small objects and narrow parts, also slightly domed, flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
  • Material Temperature Max: 122 °F
  • Fitting Size: 1/8" mm.
  • Curve Radius (Min): 25 mm.
  • Movement Vertical (Max): 2.8 mm.
View other configurations.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 4.5 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 12 N Vertical to the Surface
90 -kPa 16 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 4.5 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 9 N Parallel to the Surface
90 -kPa 12 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Excellent
Oil Excellent
Weather Ozone Excellent
Hydrolysis Fair
Petrol Fair
Concentrated Acids Fair
Alcohol Not applicable
Ethanol Fair
Methanol Poor
Oxidation Poor
