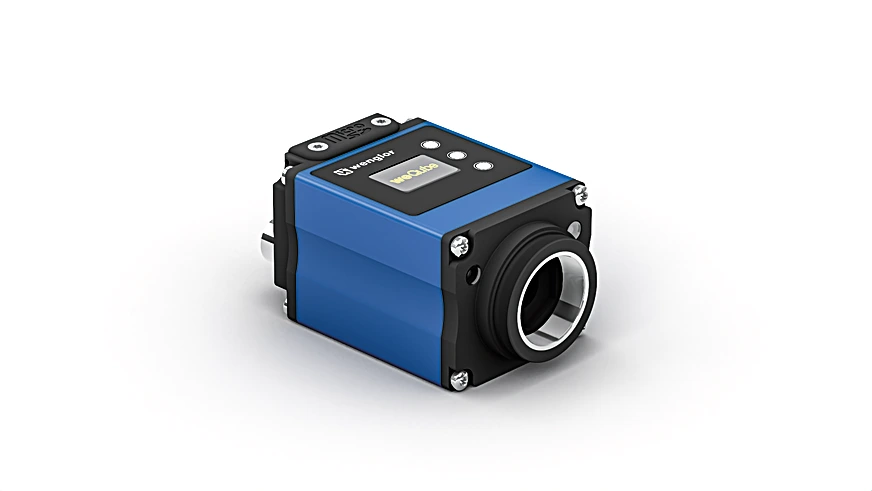

Wenglor B50R011 OCR Reader

Features

• MultiCore technology
• OCR reading
• Lens thread: C-Mount
• Resolution: 736 × 480 Pixel
• Resolution: 0.35 MP
• Image Chip: monochrome
• Image chip size: 1/3"
• Pixel Size: 6 × 6 µm
• Light Source: External lighting
• Optics: C mount
• Service Life (T = 77°F): 100,000 h
• Frame rate (fullframe): 25 fps
• Temperature Range: -13°F to 131°F*
• Atmospheric humidity: 5 to 95%, non-condensing
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 200 mA
• Response Time: 40 ms
• Inputs/Outputs: 6
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Interface: RS-232/Ethernet
• General protocols: FTP, RS-232, TCP/IP, UDP
• Protection Class: III
• Setting Method: Ethernet, Web server
• Housing Material: Aluminum
• Degree of Protection: IP67
• UL Enclosure Type: 1

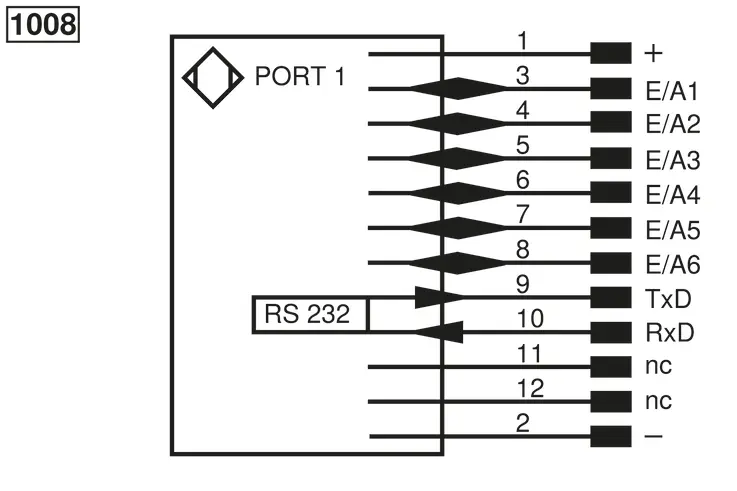

• Connection: M12 × 1; 12-pin

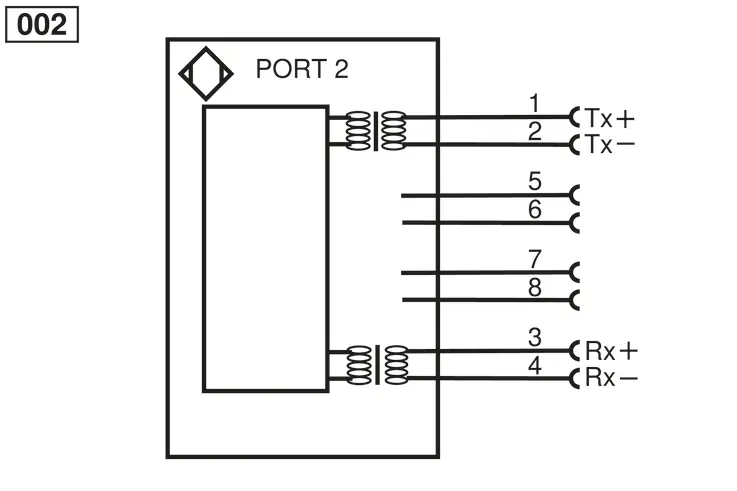

• Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
• Optic Cover: Plastic, PMMA, ABS
• PWIS-free: yes
• Weight: 303 g
• MTTFd (EN ISO 13849-1): 263.03 a
• Software: uniVision 2
• License package: weQubeOCR
• OCR: yes
• Tracking: yes
• PNP NO: yes
• Output: Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
