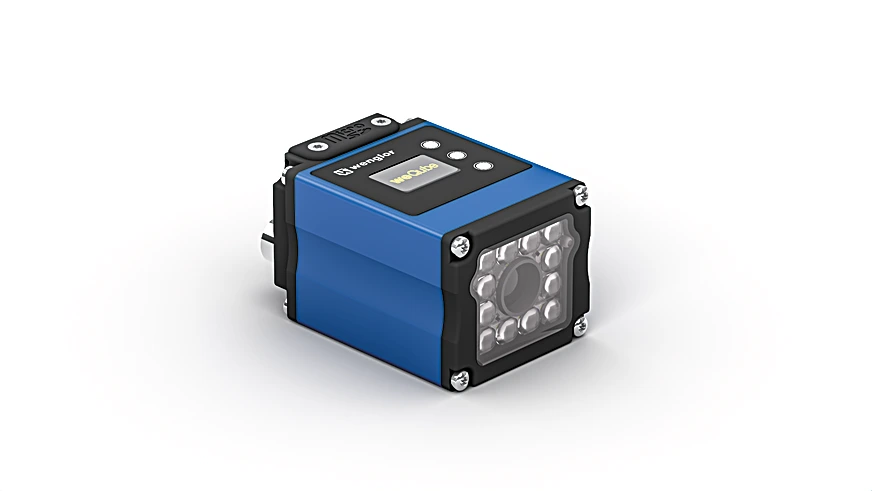

Wenglor B50M101 Smart Camera

Smart Camera.

$4,956.00
Part Number
  • B50M101
Highlights...

Features

  • Image processing functions
  • MultiCore technology
  • Reading of printed and directly marked 1D and 2D codes
  • OCR reading
  • Pattern matching
  • Working Range: ≥ 20 mm
  • Resolution: 736 × 480 Pixel
  • Resolution: 0.35 MP
  • Focal distance: 6.4 mm
  • Image Chip: monochrome
  • Image chip size: 1/3"
  • Pixel Size: 6 × 6 µm
  • Light Source: White Light
  • Optics: Auto-focus
  • Visual Field: see table 1
  • Frame rate (fullframe): 25 fps
  • Minimum object distance: 20 mm
  • Temperature Range: -13°F to 131°F*
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 200 mA
  • Inputs/Outputs: 6
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: RS-232/Ethernet
  • Industry protocols: EtherNet/IP™, PROFINET I/O, CC-A
  • General protocols: FTP, RS-232, TCP/IP, UDP
  • Protection Class: III
  • Setting Method: Web server
  • Housing Material: Aluminum, powder-coated, Plastic, ABS, Plastic, PA-GF
  • Degree of Protection: IP67
  • UL Enclosure Type: 1
  • Connection: M12 × 1; 12-pin
  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Optic Cover: Plastic, PMMA
  • PWIS-free: yes
  • Weight: 221 g
  • MTTFd (EN ISO 13849-1): 227.7 a
  • Software: uniVision 2
  • License package: weQube - Die Smart Camera
  • Presence Check: yes
  • Pixel Comparison: yes
  • Reference Image Comparison: yes
  • Tracking: yes
  • OCR: yes
  • Object detection: yes
  • Dimensional accuracy check: yes
  • 1D and 2D code reading: yes
  • Pattern matching: yes
  • PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Working Distance: 20 mm, 100 mm, 200 mm
  • Visual Field: 9 x 6 mm, 65 x 42 mm, 134 x 87 mm
The smart camera weQube is based on the wenglor MultiCore technology and combines the function of the scanner and the vision sensors. Therefore, this product allows to capture all established 1D codes and various 2D code types. Autofocus, region of interest and tracking ensure reliable and stable image recording. The following image processing modules are available: Dimensional accuracy check, sorting procedures, presence control, object counting, position output, pixel counting, optical character recognition, pattern matching, filter options, and statistics evaluation.
