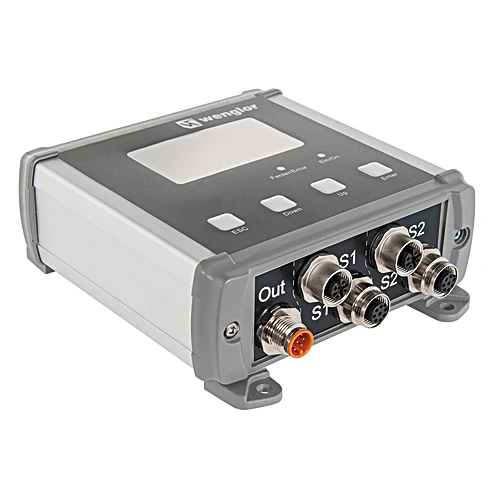

Wenglor AW02 Analog Evaluation Unit Menu Driven

Features

• High-speed evaluation of two analog voltages (GOOD/BAD selection)

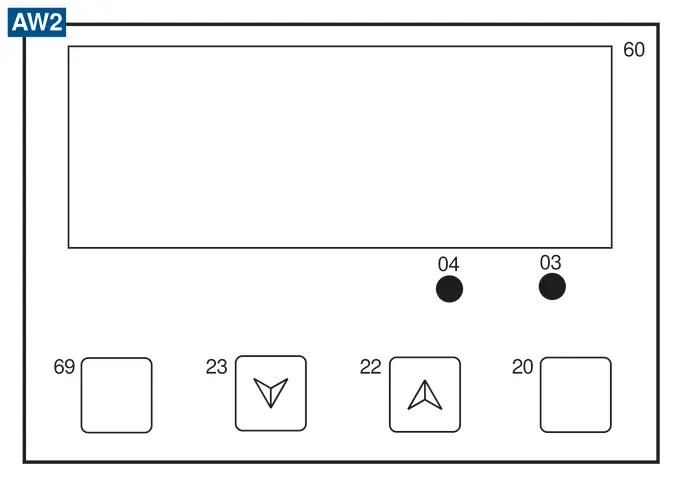

• Easy operation via menu-driven LCD display
• Measurement of thickness, difference, height, unbalance and volume flow
• Two independent outputs
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): 100 mA
• Measuring Rate: 5,000 /s
• Temperature Range: 14°F to 122°F
• Number of Switching Outputs: 2
• PNP Switching Output/Switching Current: 400 mA
• PNP Error Output/Switching Current: 400 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Interface: RS-232
• Transmission rate: 38,4 kBd
• Resolution: < 5 mV
• Number of Analog Inputs: 2
• Analog Input: 0 to 10 V
• Protection Class: III
• Housing Material: Aluminum, anodised, Plastic, ABS
• Degree of Protection: IP65

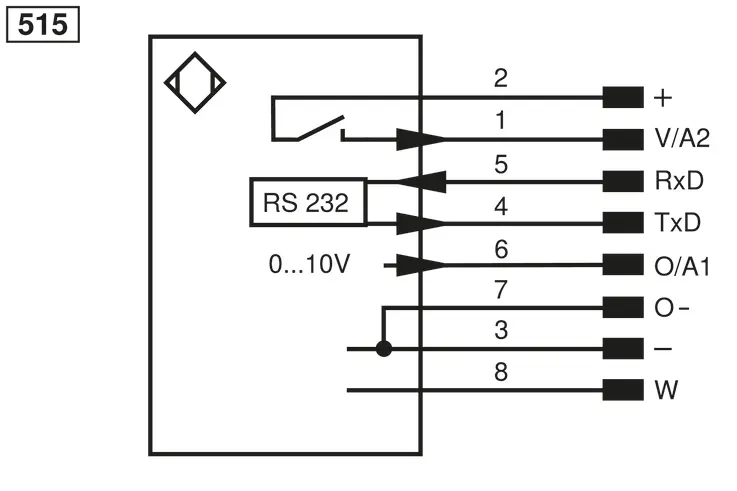

• Connection: M12 × 1; 8-pin
• Weight: 535 g
• Packaging unit: 1 Piece
• Scope of delivery: 1 × analog evaluation unit, 1 × BEF-SET-19 mounting set
• Error Output: yes
• PNP NO/NC switchable: yes
• Analog Output: yes
• RS-232 Interface: yes
• Complementary Products: Interface Cable S232W3
