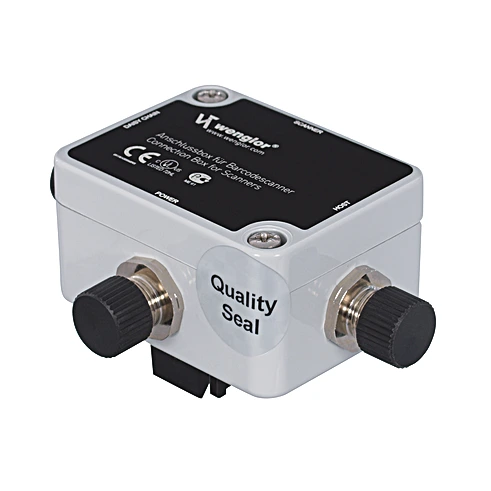

Wenglor AB-0003-1 Connection Box for 1D-/2D- and Barcode-Scanners

Features

• NPN-PNP conversion of the scanner I/Os
• RS-232/422/485 interfaces to host, to busgateway or for daisy chain of the scanners
• Voltage supply for scanners (5 V)
• Easy handling
• Supply Voltage: 10 to 30 V DC
• Voltage Supply for Scanners: 5 V
• Current Consumption (Ub = 24 V): 500 mA
• Number of Switching Outputs: 3
• PNP Switching Output/Switching Current: 400 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Degree of Protection: IP65
• Temperature Range: -13°F to 140°F
• Housing Material: Plastic, ABS

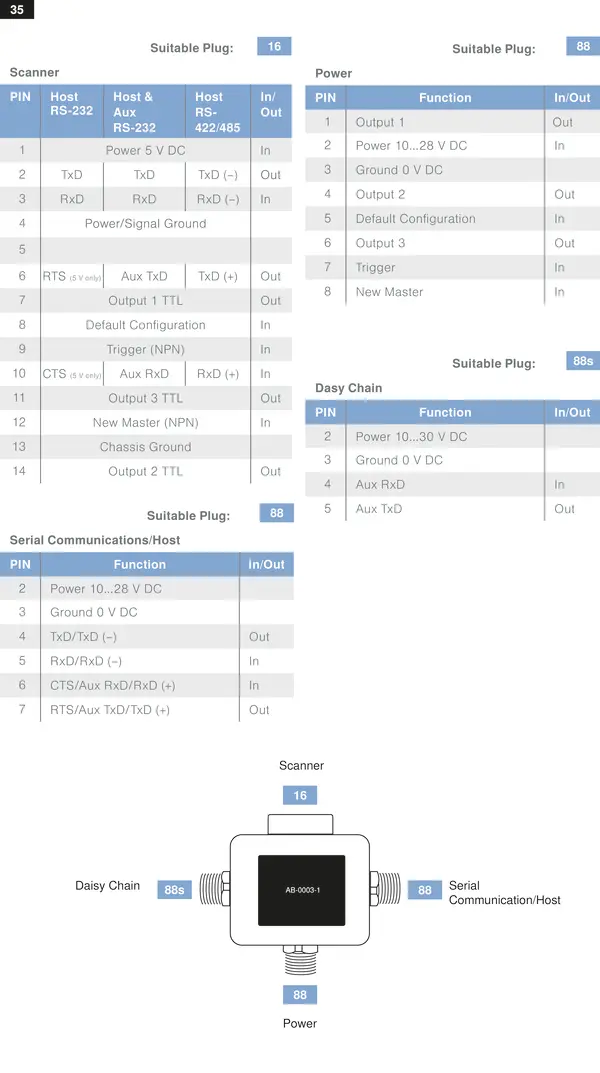

• Connection Mode Scanner: SubD 15 S
• Connection Mode Supply Voltage, I/O: M12 × 1; 8-pin
• Connection Bus Side: M12 × 1; 8-pin
• DIN-Rail mounting: 35 mm
• Weight: 174 g
• Packaging unit: 1 Piece
• PNP NO/NC switchable: yes
• Complementary Products: Interface Cable S232W3
