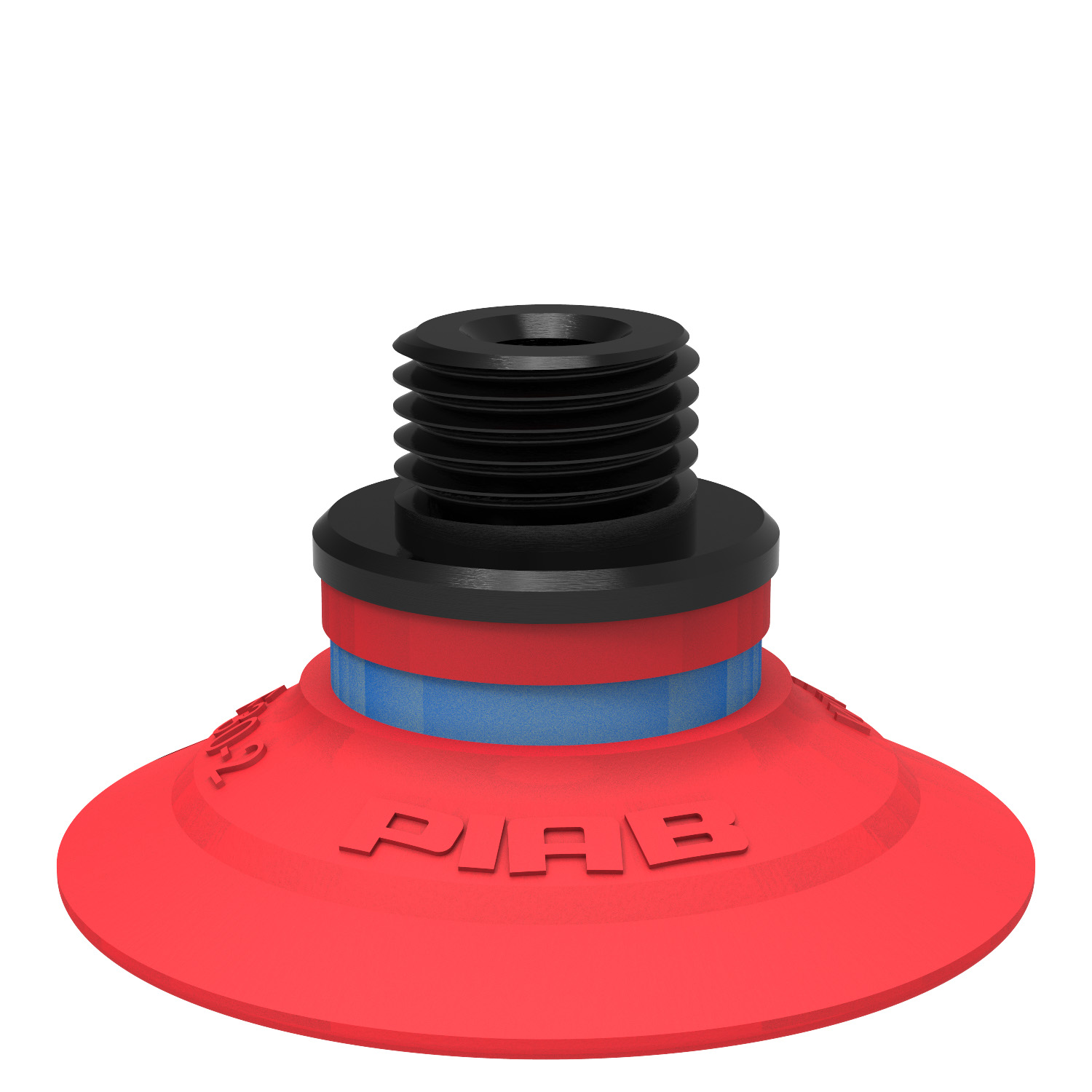

Piab F75.20.07UB / 0128577 Suction cup F75 Silicone, 3/8" NPSF female Al, with mesh filter

Piab’s FDA/EU approved silicone flat suction cups are designed for hygienic and safe handling in food, pharmaceutical, and regulated environments. Crafted from compliant silicone, they offer a gentle grip and reliable performance on flat surfaces. The fla.

$70.90
Part Numbers
  • F75.20.07UB
  • 0128577
Highlights...

Features

  • FDA/EU compliant silicone for regulated industries
  • Flat design for secure, stable handling
  • Resistant to chemicals and high temperatures
  • Hygienic and easy to clean
  • Ideal for food, pharma, and sensitive applications
  • Recommended when the lifting force is parallel to the surface of the object.
  • Material Temperature Max: 392 °F
  • Fitting Size: 3/8" mm.
  • Curve Radius (Min): 150 mm.
  • Movement Vertical (Max): 3 mm.
View other configurations.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 80 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 200 N Vertical to the Surface
90 -kPa 270 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 60 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 110 N Parallel to the Surface
90 -kPa 140 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Good
Oil Poor
Weather Ozone Excellent
Hydrolysis Fair
Petrol Poor
Concentrated Acids Poor
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Excellent
