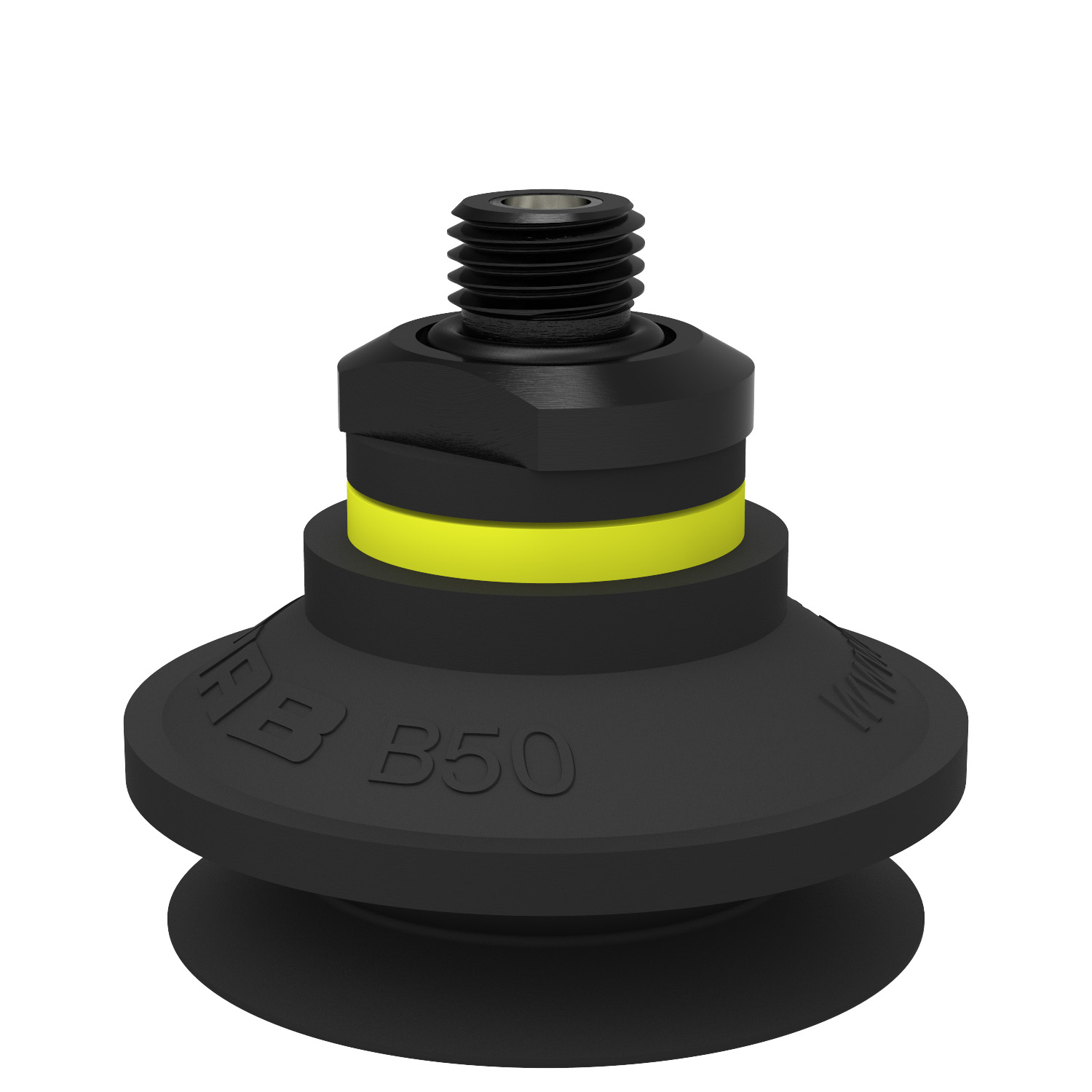

Piab B50-2.30.05AE / 0101673 Suction cup B50-2 Nitrile-PVC, 3/8" NPT male, with mesh filter

Piab’s Nitrile-PVC bellow suction cups are designed for robust and reliable handling in demanding industrial environments. Constructed from a durable Nitrile-PVC blend, these cups offer excellent resistance to oils, chemicals, and abrasion. The flexible b.

Available in other configurations.

Piab B50-2.30.05AE / 0101673 Suction cup B50-2 Nitrile-PVC, 3/8 NPT male, with mesh filter — Piab-B50-2.30.05AE

Available in XX other configurations.

$27.53

Part Numbers

B50-2.30.05AE
0101673

Highlights...

B50-2.30.05AE
By Piab
FREE Shipping on orders of $2,000 or more
Call for availability

Features

Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
The lifting movement can be used to separate small and thin objects.
Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Material Temperature Max: 194 °F
Fitting Size: 3/8" mm.
Curve Radius (Min): 30 mm.
Movement Vertical (Max): 12.4 mm.

View other configurations.

Lifting Force Specifications

Vacuum Level	Lifting Force	Direction
20 -kPa	33 N	Vertical to the Surface
40 -kPa	0 N	Vertical to the Surface
50 -kPa	0 N	Vertical to the Surface
60 -kPa	65 N	Vertical to the Surface
90 -kPa	82 N	Vertical to the Surface
10 -kPa	0 N	Parallel to the Surface
20 -kPa	24.2 N	Parallel to the Surface
40 -kPa	0 N	Parallel to the Surface
60 -kPa	51.2 N	Parallel to the Surface
90 -kPa	60.8 N	Parallel to the Surface

Material Quality Specifications

Material	Quality
Wear Resistance	Excellent
Oil	Excellent
Weather Ozone	Good
Hydrolysis	Good
Petrol	Excellent
Concentrated Acids	Fair
Alcohol	Good
Ethanol	Not applicable
Methanol	Not applicable
Oxidation	Good

Spec Sheets

Piab B50-2.30.05AE Suction cup B50-2 Nitrile-PVC, 3/8" NPT male, with mesh filter Datasheet (346 KB)
