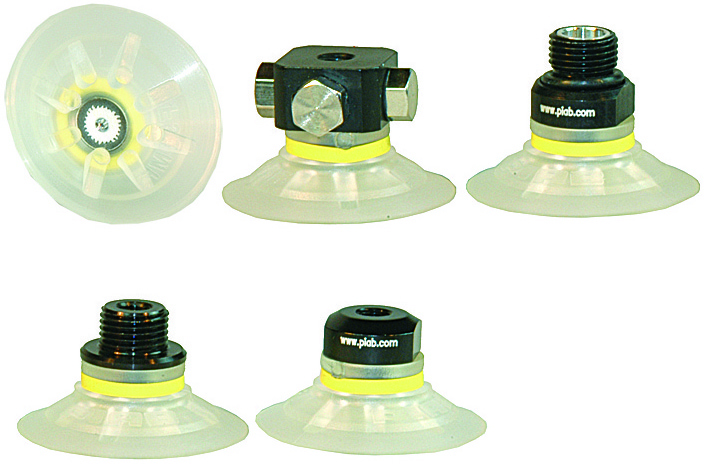

Piab F40MF.40.04AC / 0101587

Piab’s mark-free TPE flat suction cups are designed for gentle, trace-free handling of sensitive or high-value products. Made from advanced thermoplastic elastomer (TPE), these cups provide a soft, non-marking grip, ideal for surfaces where appearance is .

$17.82
Part Numbers
  • F40MF.40.04AC
  • 0101587
Highlights...

Features

  • Mark-Free Material. Made from special thermoelastic polyurethane (TPU), these cups leave no marks or traces on handled objects, ensuring perfect surface integrity for glass, metal, and other sensitive materials.
  • Ideal for Flat Surfaces. Engineered specifically for flat objects, the F-MF cups provide excellent stability and minimal inherent movement during handling.
  • The design delivers a strong, stable grip with minimal deformation, making them reliable for precise positioning and parallel lifting.
  • Available in multiple sizes from 15 to 50 mm, the series covers a broad range of application needs, from small to large flat objects.
  • The material withstands a wide temperature range and resists common chemicals, making the cups suitable for demanding industrial environments
  • Recommended when the lifting force is parallel to the surface of the object.
  • Material Temperature Max: 176 °F
  • Fitting Size: 1/4" mm.
  • Curve Radius (Min): 60 mm.
  • Movement Vertical (Max): 1.8 mm.
View other configurations.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 18 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 57 N Vertical to the Surface
90 -kPa 83 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 16 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 49 N Parallel to the Surface
90 -kPa 57 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Excellent
Oil Excellent
Weather Ozone Excellent
Hydrolysis Poor
Petrol Poor
Concentrated Acids Poor
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Good
