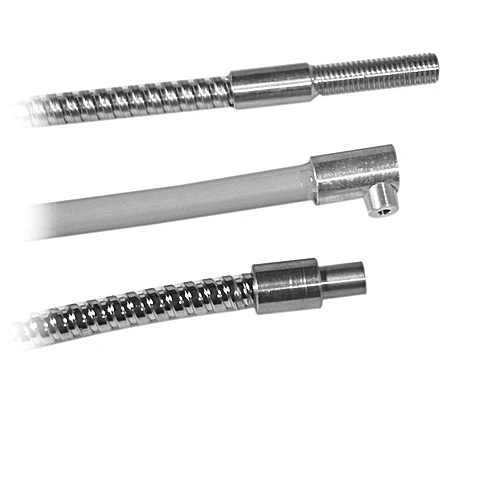

Wenglor 301-351-208T Glass Fiber-Optic Cable Reflex Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Heat resistant up to 482°F
• Fiber Bundle Diameter: 3 mm
• Range with Sensor Type U_87__: 1,000 mm
• Range with Sensor Type U_88__: 670 mm
• Range with Sensor Type U_66__: 335 mm
• Range with Sensor Type U_55__: 165 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Fiber Distribution: separate fiber bundles
• Temperature Range: -13°F to 482°F
• Bending Radius: 80 mm
• Fiber-Optic Length L: 2 m
• Jacket Material: Stainless steel, V2A (1.4301/304)
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• End Sleeve No.: 51
• End sleeve shape: Straight with shoulder and thread
• Light Emission: straight
• Weight: 230 g
• Scope of delivery: 1 × fiber-optic cable
