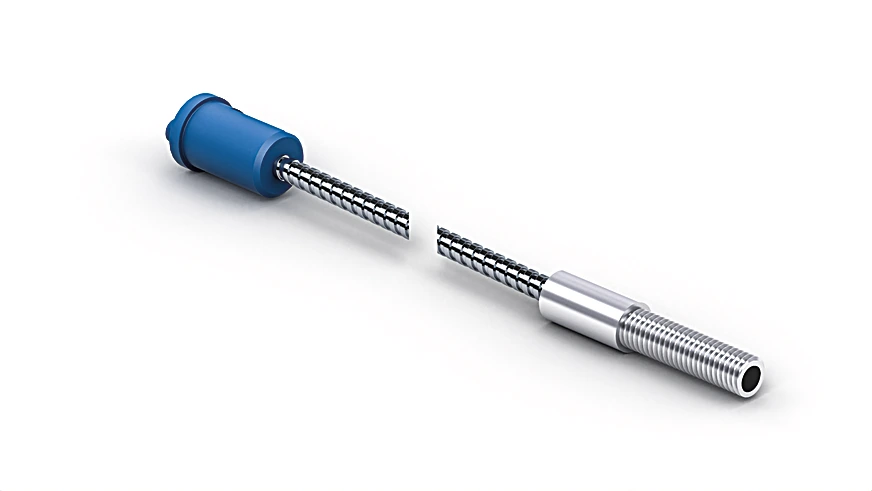

Wenglor 301-351-112 Glass Fiber-Optic Cable Reflex Mode

$756.00

Part Number

301-351-112

Highlights...

301-351-112
By Wenglor
FREE Shipping on orders of $2,000 or more
Usually ships in 1-2 weeks

Features

A broad range of applications are possible due to the modular system design
The fiber-optic cable is available and can be ordered.
Fiber Bundle Diameter: 3 mm
Range with Sensor Type P1XF001: 0 to 50 mm
Opening Angle: 68 °
Fiber: Step Index
Fiber Diameter: 50 µm
Fiber Distribution: separate fiber bundles
Temperature Range: -13°F to 356°F
Bending Radius: 70 mm
Fiber-Optic Length L: 3 m
Jacket Material: Stainless steel, V2A (1.4301/304)
Material End Sleeve: Stainless steel, V2A (1.4305/303)
End Sleeve No.: 51
Light Emission: straight
End sleeves length L1: 30 mm
End sleeves thread L1: M8
End sleeves length L2: 20 mm
Diameter D1: 6 mm
Diameter D2: 8 mm
Adapter length L3: 30 mm
Adapter length L4: 3 mm
Adapter thread L4: M30
Diameter D3: 21.8 mm
Diameter D4: 26 mm
Eyes distance A1: 11.6 mm
Weight: 345 g
Scope of delivery: 1 × fiber-optic cable

Glass fiber-optic cables are extremely flexible and can be used in confined spaces. Metal-sheathed glass fiber-optic cables are the solution for high ambient temperatures in particular. The modular system enables different fiber diameters, sheaths and other options to be manufactured individually. The technical support team will be happy to answer any further questions you may have.
