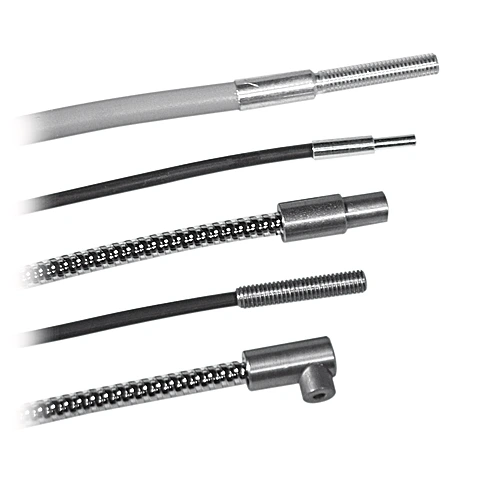

Wenglor 233-337-208T Glass Fiber-Optic Cable Through-Beam Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Fiber Bundle Diameter: 2.3 mm
• Range with Sensor Type U_87__: 1,800 mm
• Range with Sensor Type U_88__: 1,800 mm
• Range with Sensor Type U_66__: 1,000 mm
• Range with Sensor Type U_55__: 500 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Temperature Range: -13°F to 482°F
• Bending Radius: 60 mm
• Fiber-Optic Length L: 2 m
• Jacket Material: Stainless steel, V2A (1.4301/304)
• End sleeve shape: Angled
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• Light Emission: sidewise
• Weight: 255 g
• Scope of delivery: 1 × optical mount for universal optics M, 1 × UEM18KU-02 sleeve nut, 2 × fiber-optic cables
• Packaging unit: 1 Piece
