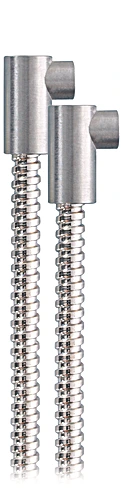

Wenglor 233-337-103 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$412.00
Part Number
  • 233-337-103
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Fiber Bundle Diameter: 2.3 mm
  • Range with Sensor Type U_87__: 1,300 mm
  • Range with Sensor Type U_88__: 1,300 mm
  • Range with Sensor Type U_66__: 1,100 mm
  • Range with Sensor Type U_55__: 550 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Temperature Range: -13°F to 356°F
  • Bending Radius: 50 mm
  • Fiber-Optic Length L: 0.75 m
  • Jacket Material: Stainless steel, V2A (1.4301/304)
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • End Sleeve No.: 37
  • Light Emission: sidewise
  • Weight: 114 g
  • Scope of delivery: 2 × fiber-optic cables
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
