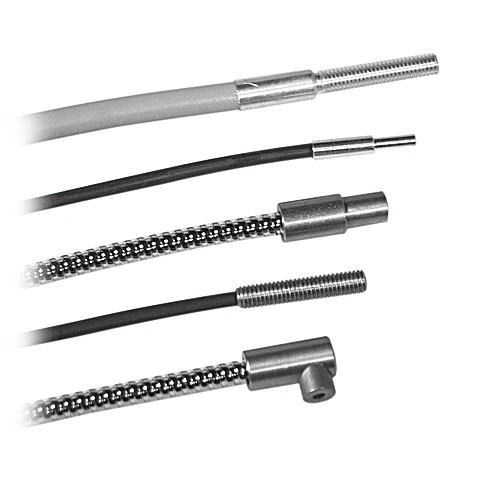

Wenglor 233-156-108 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$329.00
Part Number
  • 233-156-108
Highlights...

Features

  • Stock types deliverable at short notice
  • A broad range of applications are possible due to the modular system design
  • Fiber Bundle Diameter: 2.3 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Temperature Range: -13°F to 176°F
  • Bending Radius: 40 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: PVC
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • End Sleeve No.: 56
  • Light Emission: straight
  • Weight: 117 g
  • Scope of delivery: 2 × fiber-optic cables
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
