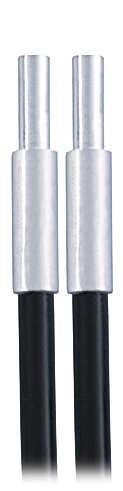

Wenglor 233-110-106 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$296.00
Part Number
  • 233-110-106
Highlights...

Features

  • Stock types deliverable at short notice
  • A broad range of applications are possible due to the modular system design
  • Fiber Bundle Diameter: 2.3 mm
  • Range with Sensor Type U_87__: 2,800 mm
  • Range with Sensor Type U_88__: 1,940 mm
  • Range with Sensor Type U_66__: 970 mm
  • Range with Sensor Type U_55__: 485 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Temperature Range: -13°F to 176°F
  • Bending Radius: 40 mm
  • Fiber-Optic Length L: 1.5 m
  • Jacket Material: PVC
  • End sleeve shape: Straight with shoulder
  • Material End Sleeve: Aluminum
  • End Sleeve No.: 10
  • Light Emission: straight
  • Weight: 87 g
  • Scope of delivery: 2 × fiber-optic cables
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
