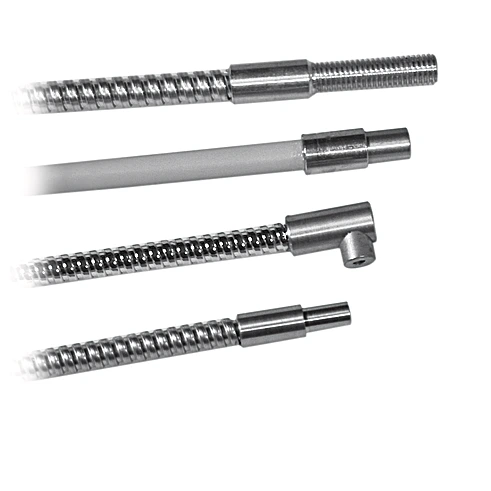

Wenglor 201-434-608E2 Glass Fiber-Optic Cable Reflex Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Fiber Bundle Diameter: 2 mm
• Range with Sensor Type U_88__: 380 mm
• Range with Sensor Type U_66__: 135 mm
• Range with Sensor Type U_55__: 100 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Fiber Distribution: separate fiber bundles
• Temperature Range: -13°F to 356°F
• Fiber-Optic Length L: 2 m
• Jacket Material: Silicone
• Material End Sleeve: Aluminum
• End Sleeve No.: 34
• Light Emission: sidewise

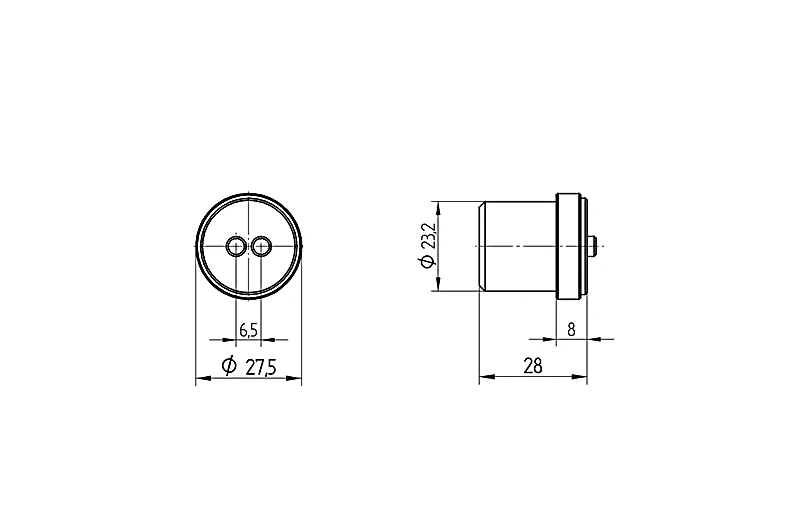

• Diameter D1: 3.5 mm
• Diameter D2: 4.5 mm
• Adapter thread L4: M30
• Diameter D3: 23.2 mm
• Diameter D4: 27.5 mm
• Eyes distance A1: 6.5 mm
• Weight: 270 g
• Scope of delivery: 1 × fiber-optic cable
