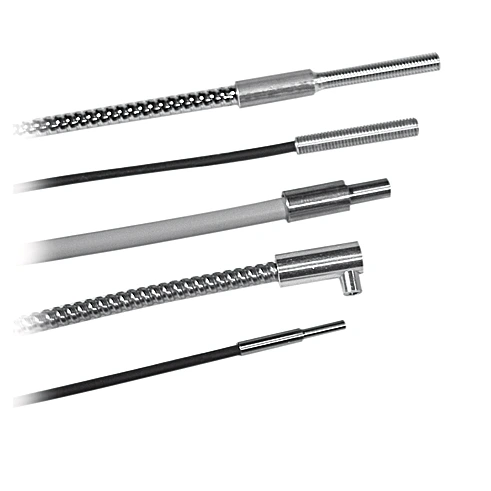

Wenglor 163-455-108 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$410.00
Part Number
  • 163-455-108
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Fiber Bundle Diameter: 1.6 mm
  • Range with Sensor Type U_87__: 1,020 mm
  • Range with Sensor Type U_88__: 680 mm
  • Range with Sensor Type U_66__: 340 mm
  • Range with Sensor Type U_55__: 170 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 63 µm
  • Temperature Range: -76°F to 356°F
  • Bending Radius: 20 mm
  • Fiber-Optic Length L: 1 m
  • Jacket Material: Metal-Silicone
  • End sleeve shape: Straight without thread and with shoulder
  • Material End Sleeve: Aluminum
  • End Sleeve No.: 65
  • Weight: 236 g
  • Scope of delivery: 2 × fiber-optic cables
  • Packaging unit: 2 Pieces
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
