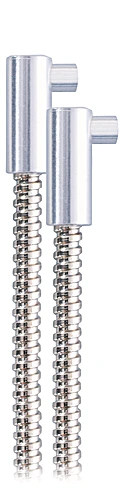

Wenglor 163-338-203T Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$454.00
Part Number
  • 163-338-203T
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Heat resistant up to 482°F
  • Fiber Bundle Diameter: 1.6 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Temperature Range: -13°F to 482°F
  • Bending Radius: 45 mm
  • Fiber-Optic Length L: 0.75 m
  • Jacket Material: Stainless steel, V2A (1.4301/304)
  • Material End Sleeve: Aluminum
  • End Sleeve No.: 38
  • Light Emission: sidewise
  • Weight: 75 g
  • Scope of delivery: 2 × fiber-optic cables
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
