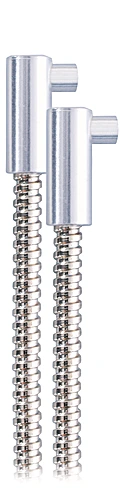

Wenglor 163-238-202 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$308.00
Part Number
  • 163-238-202
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • The fiber-optic cable is available and can be ordered.
  • Fiber Bundle Diameter: 1.6 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Temperature Range: -13°F to 356°F
  • Bending Radius: 45 mm
  • Fiber-Optic Length L: 0.5 m
  • Jacket Material: Brass, nickel-plated
  • Material End Sleeve: Aluminum
  • End Sleeve No.: 38
  • Light Emission: sidewise
  • Weight: 62 g
  • Scope of delivery: 2 × fiber-optic cables
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
