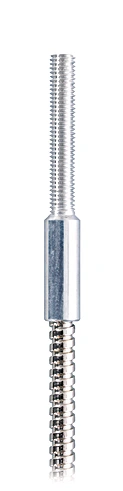

Wenglor 161-356-102 Glass Fiber-Optic Cable Reflex Mode

Glass Fiber-Optic Cable Reflex Mode.

$207.00
Part Number
  • 161-356-102
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Compatible with the P1XF001 6-channel Multispectral Sensor
  • Fiber Bundle Diameter: 1.6 mm
  • Range with Sensor Type P1XF001: 0 to 25 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Fiber Distribution: separate fiber bundles
  • Temperature Range: -13°F to 356°F
  • Bending Radius: 50 mm
  • Fiber-Optic Length L: 0.5 m
  • Jacket Material: Stainless steel, V2A (1.4301/304)
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • End Sleeve No.: 56
  • Light Emission: straight
  • Weight: 43 g
  • Scope of delivery: 1 × fiber-optic cable
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
