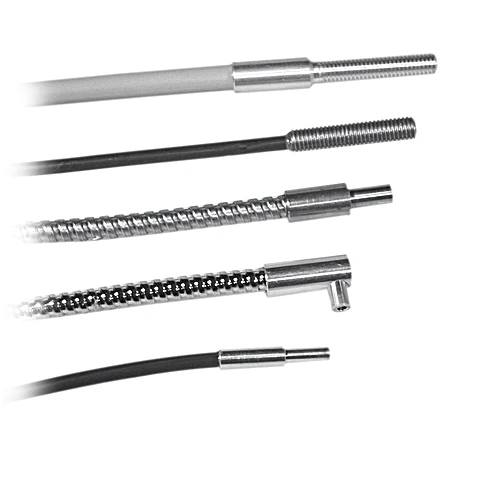

Wenglor 161-338-208T Glass Fiber-Optic Cable Reflex Mode

Glass Fiber-Optic Cable Reflex Mode.

$519.00
Part Number
  • 161-338-208T
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Heat resistant up to 482°F
  • Fiber Bundle Diameter: 1.6 mm
  • Range with Sensor Type U_88__: 160 mm
  • Range with Sensor Type U_66__: 75 mm
  • Range with Sensor Type U_55__: 30 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Fiber Distribution: statistical mixture
  • Temperature Range: -13°F to 482°F
  • Bending Radius: 50 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: Stainless steel, V2A (1.4301/304)
  • Material End Sleeve: Brass, nickel-plated
  • End Sleeve No.: 40
  • End sleeve shape: Angled
  • Light Emission: sidewise
  • Weight: 137 g
  • Scope of delivery: 1 × fiber-optic cable
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
