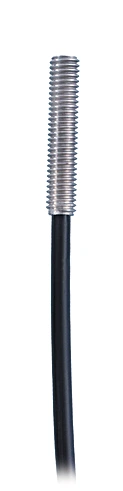

Wenglor 161-156-203 Glass Fiber-Optic Cable Reflex Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Fiber Bundle Diameter: 1.6 mm
• Range with Sensor Type U_87__: 255 mm
• Range with Sensor Type U_88__: 170 mm
• Range with Sensor Type U_66__: 85 mm
• Range with Sensor Type U_55__: 43 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Fiber Distribution: statistical mixture
• Temperature Range: -13°F to 176°F
• Bending Radius: 40 mm
• Fiber-Optic Length L: 0.75 m
• Jacket Material: PVC
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• End Sleeve No.: 56
• End sleeve shape: Straight with thread
• Light Emission: straight
• Weight: 26 g
• Scope of delivery: 1 × fiber-optic cable
• Packaging unit: 1 Piece
