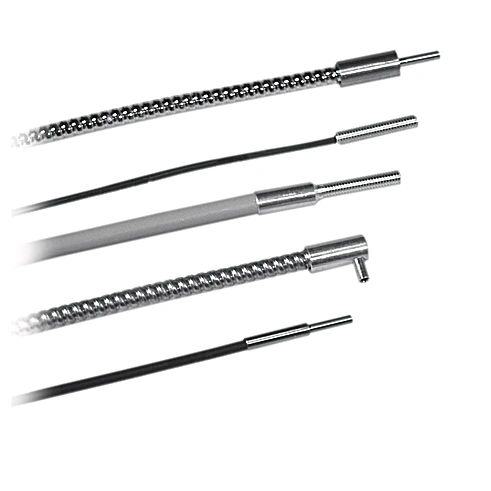

Wenglor 113-432-202 Glass Fiber-Optic Cable Through-Beam Mode

Features

• The fiber-optic cable is available and can be ordered.
• A broad range of applications are possible due to the modular system design
• Fiber Bundle Diameter: 1.1 mm
• Range with Sensor Type U_87__: 600 mm
• Range with Sensor Type U_88__: 400 mm
• Range with Sensor Type U_66__: 200 mm
• Range with Sensor Type U_55__: 100 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 59 µm
• Temperature Range: -76°F to 356°F
• Bending Radius: 20 mm
• Fiber-Optic Length L: 0.5 m
• Jacket Material: Metal-Silicone
• End sleeve shape: Angled
• Material End Sleeve: Aluminum
• End Sleeve No.: 32
• Light Emission: sidewise
• Weight: 57 g
• Scope of delivery: 2 × fiber-optic cables
• Packaging unit: 2 Pieces
