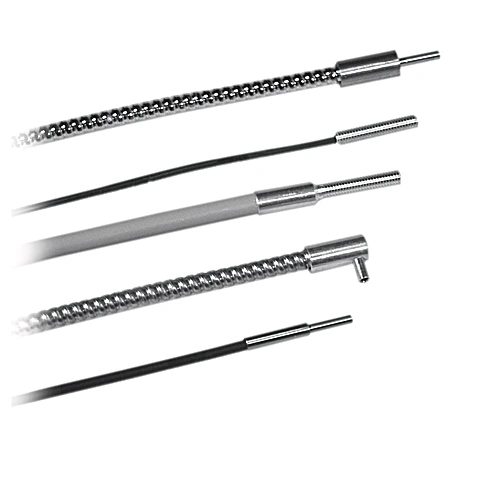

Wenglor 113-335-504E8 Glass Fiber-Optic Cable Through-Beam Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Fiber Bundle Diameter: 1.1 mm
• Range with Sensor Type U_87__: 540 mm
• Range with Sensor Type U_88__: 360 mm
• Range with Sensor Type U_66__: 180 mm
• Range with Sensor Type U_55__: 90 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Temperature Range: -13°F to 356°F
• Bending Radius: 45 mm
• Fiber-Optic Length L: 1 m
• Jacket Material: Stainless steel, V2A (1.4301/304)
• End sleeve shape: Angled
• Material End Sleeve: Aluminum
• Light Emission: sidewise
• Weight: 82 g
• Scope of delivery: 2 × fiber-optic cables
