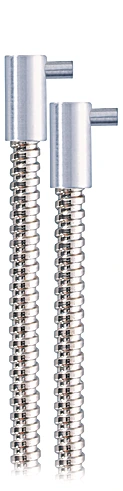

Wenglor 113-332-206T Glass Fiber-Optic Cable Through-Beam Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Heat resistant up to 482°F
• Fiber Bundle Diameter: 1.1 mm
• Range with Sensor Type U_87__: 600 mm
• Range with Sensor Type U_88__: 400 mm
• Range with Sensor Type U_66__: 200 mm
• Range with Sensor Type U_55__: 100 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Temperature Range: -13°F to 482°F
• Bending Radius: 45 mm
• Fiber-Optic Length L: 1.5 m
• Jacket Material: Stainless steel, V2A (1.4301/304)
• End sleeve shape: Angled
• Material End Sleeve: Aluminum
• End Sleeve No.: 32
• Light Emission: sidewise
• Weight: 127 g
• Scope of delivery: 2 × fiber-optic cables
