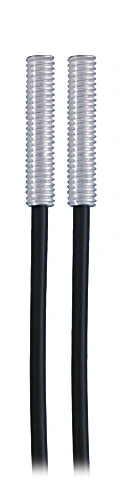

Wenglor 113-154-202 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$220.00
Part Number
  • 113-154-202
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Fiber Bundle Diameter: 1.1 mm
  • Range with Sensor Type U_87__: 600 mm
  • Range with Sensor Type U_88__: 400 mm
  • Range with Sensor Type U_66__: 200 mm
  • Range with Sensor Type U_55__: 100 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Temperature Range: -13°F to 176°F
  • Bending Radius: 23 mm
  • Fiber-Optic Length L: 0.5 m
  • Jacket Material: PVC
  • End sleeve shape: Straight with thread
  • Material End Sleeve: Aluminum
  • End Sleeve No.: 54
  • Light Emission: straight
  • Weight: 15 g
  • Scope of delivery: 2 × fiber-optic cables
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
