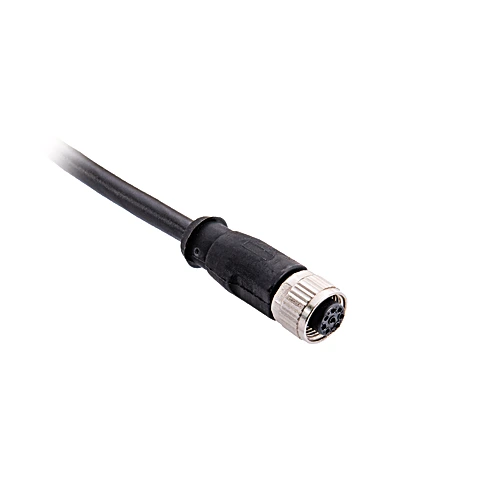

Wenglor ZC9L002 Connection Line M12 × 1; 8-pin

Features

• Drag chain suitable
• 2 individually shielded cores for safe laser shutdown
• Connection 1: Socket, straight

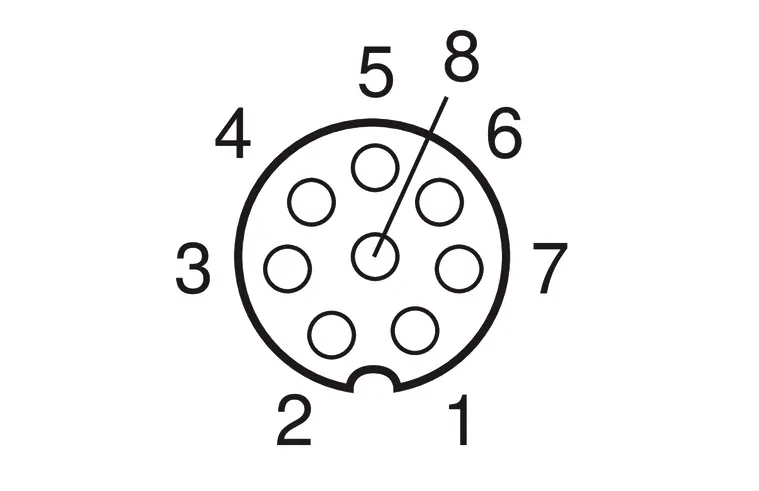

• Connection mode 1: M12 × 1, 8-pin
• Connection 2: stripped
• Torque: M12: 0,6 Nm
• Coding: A-coding
• Cable length (L): 10 m
• Outer diameter (d): 6.2 mm
• Degree of Protection: IP67
• Temperature Range: -13°F to 176°F
• Cable Jacket Material: Plastic, TPE-U (PUR)
• Material Wire Insulation: Plastic, PP
• Screened: yes
• Drag Chain Suitable: yes
• Bending radius (fixed installation): > 5 × d
• Bending radius (used in motion): > 10 × d
• Weight: 506 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
