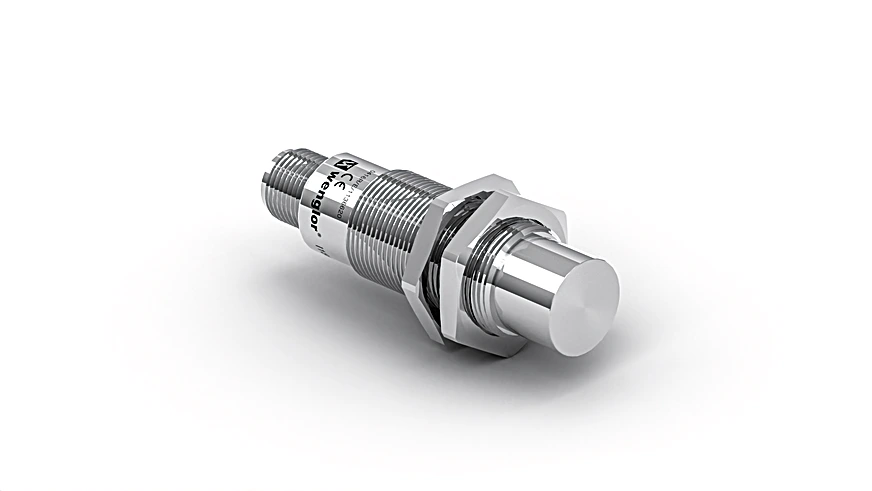

Wenglor I18G006 Inductive Sensor with Full-Metal Housing

Inductive Sensor with Full-Metal Housing.

$115.00
Part Number
  • I18G006
Highlights...

Features

  • Stainless steel housing
  • IP68/IP69K
  • Easy sensor configuration using the IO-Link interface
  • Minimal mounting clearance thanks to wenglor weproTec
  • Innovative ASIC circuit technology
  • Switching Distance: 20 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 1,12/0,63/0,57
  • Mounting: Non-flush

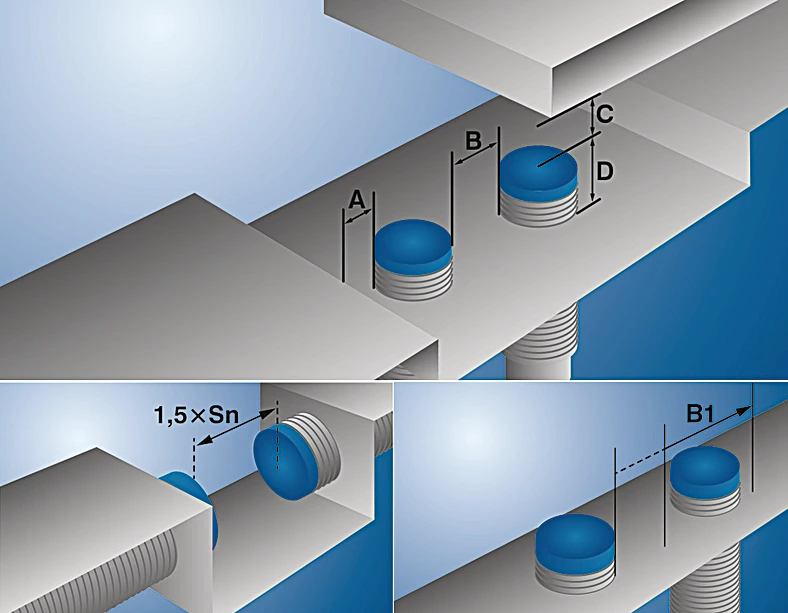

  • Mounting A/B/C/D in mm: 36/120/60/27
  • Mounting A/B/C/D (V2A) in mm: 36/105/60/27
  • Mounting B1 in mm: 5 to 30
  • Installation B1 (V2A) in mm: 5 to 30
  • Switching Hysteresis: < 10 %
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 221 Hz
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 158°F
  • Switching Output Voltage Drop: < 1 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 100 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Interface: IO-Link V1.1
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Sensing face: Stainless steel, V4A
  • Full Encapsulation: yes
  • Degree of Protection: IP67, IP68, IP69K

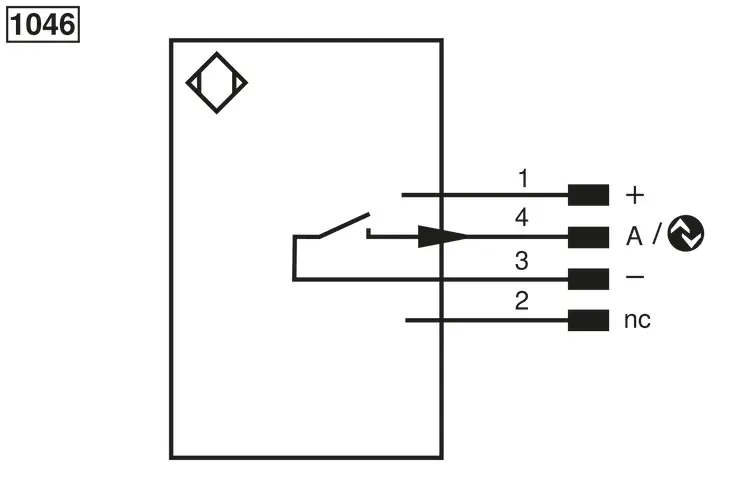

  • Connection: M12 × 1; 4-pin
  • Torque: max. 45 Nm
  • Pressure Resistance Sensor Area: 60 bar
  • EX II 3D Ex tc IIIC T90° Dc: yes
  • EX II 3G Ex ic IIC T5 Gc: yes
  • Weight: 37 g
  • MTTFd (EN ISO 13849-1): 3,706.54 a
  • Scope of delivery: 1 × ATEX information label, 1 × Z0005 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
  • NPN NO: yes
  • Output: NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Complementary Products: IO-Link Master
The inductive sensors with full-metal housing are suitable for harsh ambient conditions and washdown areas thanks to the 316L stainless steel housing. The sensors with full-metal housing impress with their easy installation and reliable switching behavior. In addition to error-free operation of several sensors in a very small space, the new generation also provides the possibility of detecting system errors before it's too late thanks to ASIC, IO-Link interface and wenglor weproTec.
